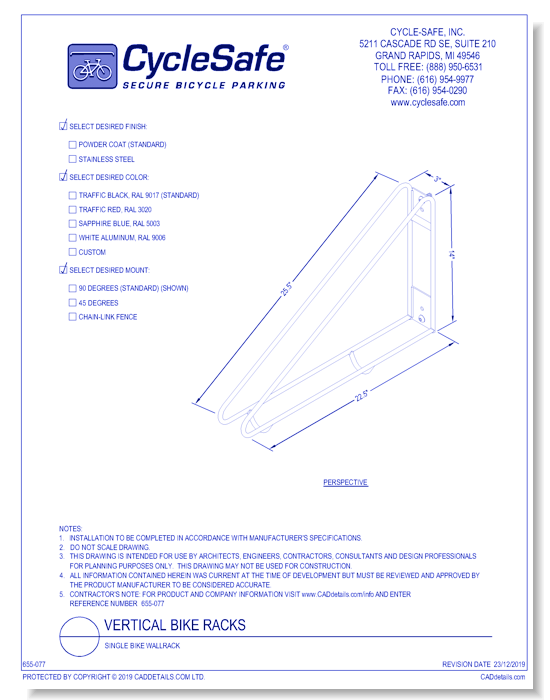

Vertical Bike Racks - Bike WallRack™
The bike WallRack™ is a simple, space saving, and economical bike storage system. Designed to free up floor space, the bike wall rack parks a bike up against a wall to allow easy accessibility and locking of the bike wheel and frame. The bike wall rack provides support and protection of the bike frame, unlike other vertical bike storage systems that put stress on the bike by hanging from the front rim.

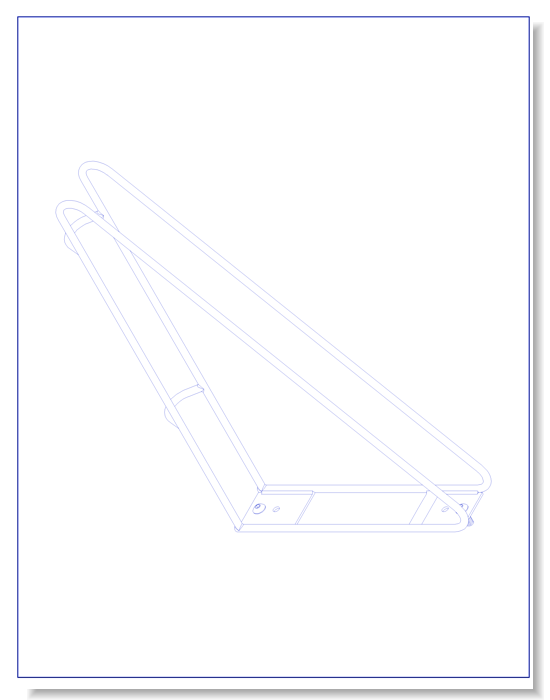

WallRack™ is fabricated of heavy-welded 3/8? diameter steel wire frame with two mounting holes 12? apart installed 16? O.C., with 12? offset to allow for handlebar clearance. Hardware includes (2) tamper resistant 5/16? diameter lag screws and 5/16? lag shields for concrete or block installations.
WallRack™ is fabricated of heavy-welded 3/8? diameter steel wire frame with two mounting holes 12? apart installed 16? O.C., with 12? offset to allow for handlebar clearance. Hardware includes (2) tamper resistant 5/16? diameter lag screws and 5/16? lag shields for concrete or block installations.
