Filtrine Manufacturing Company

Electric Water Coolers: FC-107-16-HL

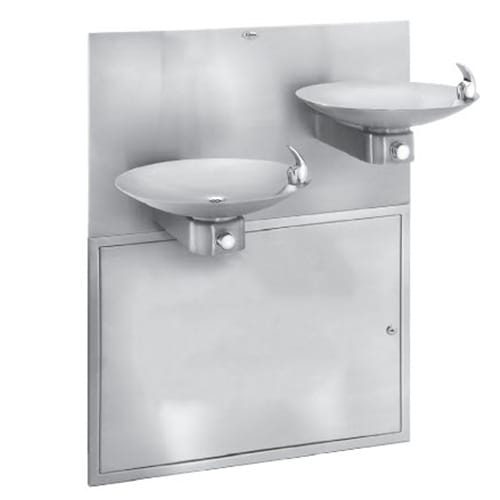

The Model FC-107-16-HL is a wall-mounted dual bowl drinking water fountain. The 16” diameter 16 ga. round bowls each have an integral drain. Overall fountain height is 3-1/4”. The hand-polished bronze finish comes in either #4 Satin (standard), or in #8 Mirror or Oil-Rubbed or Statuary Bronze. The hand-polished stainless steel drinking fountain and cover plate can be finished in your choice of either #4 Satin (standard), or #8 Mirror. The copper/brass waterways are 100% lead-free—NO PLASTIC TUBING/CONNECTORS ARE USED. The  Filtrine Taste Master® water purifier and chiller are located behind access panel directly below fountain.

Filtrine’s FC-107-16-HL fountain  meets or exceeds ADA requirements for spout height, spout location, controls and clearances as specified in the Federal Register.

Receptor

16 ga, 16” diameter seamless double bowl design with welded rim, ground and polished to a finely tapered edge with 1/32” radius. ADA compliant with 18" projection from cover plate to rim
Underbowl

Raised from support arm by 1/2” collar to provide an aesthetically pleasing profile
Support Arm

4-3/8” wide by 2-5/8” high — in 14 gauge
Mounting Plate

Made of a 1/4” steel plate, 31 1/2"W x 15 1/2"H (or 19 1/2” H with optional water bottle filler) and 3/8” steel tongues projecting into support arms
Cover Plate

Made of 16 ga stainless steel or bronze, 32"W x 3/8"D x 16"H (or 20” H with optional water bottle filler), and fits over mounting plate, secured by fountain arms
Purifier

Taste Master Purifier
CHILLER

Wall-insert Model 56NF (no fan) chiller with 2 gallon storage, charged with HFO R513A "Ozone Safe - Low GWP" refrigerant

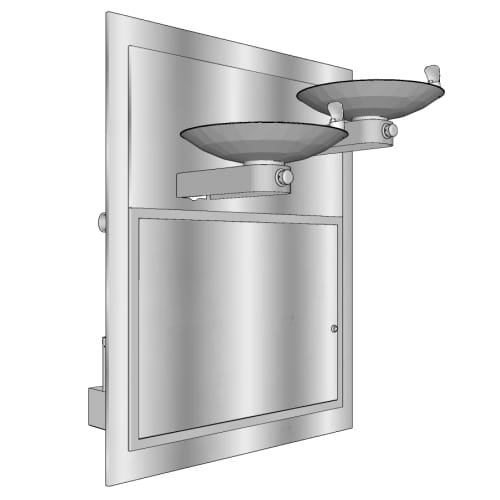

CAD Drawings BIM Models Filtrine Manufacturing Company Electric Water Coolers: FC-107-16-HL
