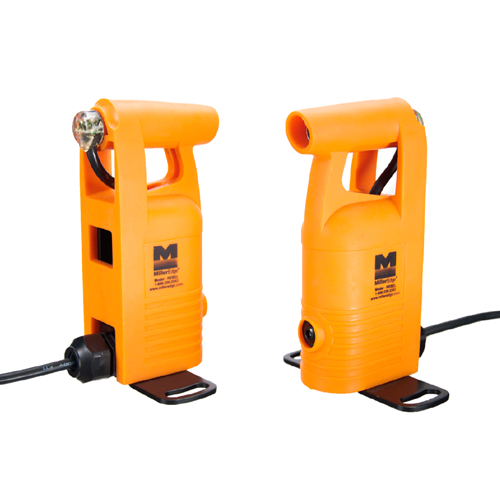

Rebel Thru Beam Photo Optic System
Infrared thru-beam photo optic system that sends an infrared beam of light from an emitting to a receiving unit. When light beam is interrupted, unit senses obstructions, and prior to direct contact, causes the door operator to stop and/or reverse the door.
Designed for use on sectional or coiling/rolling motorized doors. Impact resistant for rugged environments. Comes with enhanced sun guard protection. Easy installation with alignment and positioning indicators. Housing can be mounted vertically or horizontally with steel brackets on wall or floor. Commonly found in warehouses and loading docks. Also available in fail-safe wiring configuration.
• Tested with most listed commercial operator manufacturers
• Complies with the UL 325-2010 standard
• May be used as the required monitored device or as an ancillary device
Since 2009, the International Building Code (IBC-2009) has required compliance with the current UL 325 safety standard. Effective August 29, 2010, Underwriters Laboratories required that all commercial door operators bearing the UL label are required to be installed with a continuously monitored safety device.
