Frameless Glass Partition Systems: Solare™ Acoustic Single Glazed - Architects Package


CAD Drawings Avanti Systems USA Frameless Glass Partition Systems: Solare™ Acoustic Single Glazed - Architects Package
CAD Drawings Avanti Systems USA Frameless Glass Partition Systems: Solare™ Acoustic Single Glazed - Architects Package
CAD Drawings Avanti Systems USA Frameless Glass Partition Systems: Solare™ Acoustic Single Glazed - Architects Package

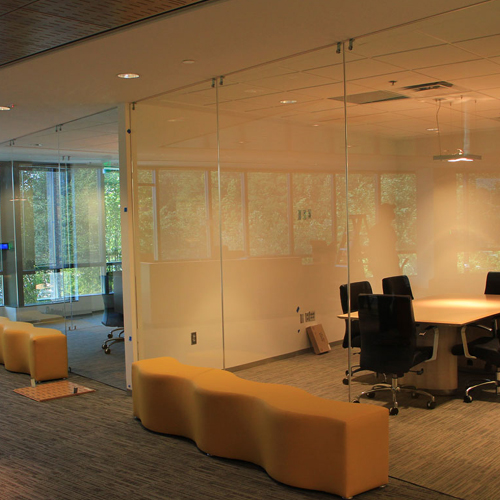

The Solare Acoustic Single Glazed Partition System provides an alternative to the solid wall and with the opaque LCD option, privacy.  The STC wall rating of 35 the system is ideal for interior offices and commercial spaces.

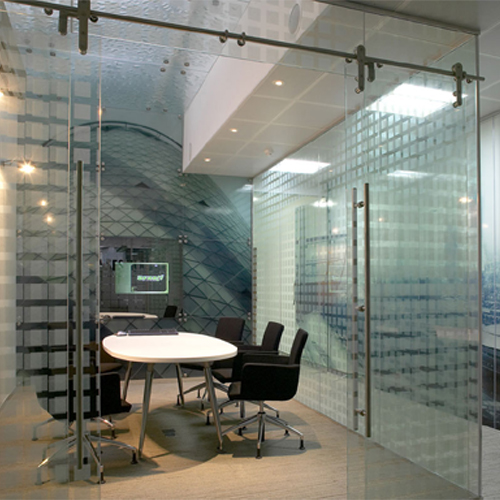

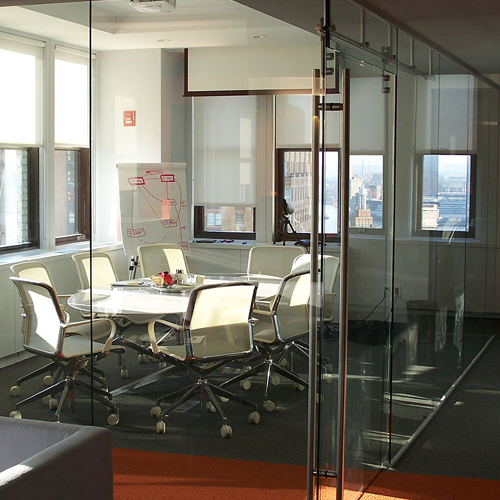

The 1”x1” aluminum track accommodates tempered, laminated, low iron and LCD glazing and may be of standard or custom RAL color.  The track may also be of a straight or curved configuration.  LCD, pivot, sliding and hinged doors may be installed.  Wood and glass doors (single glazed and double glazed) are all compatible within the single glazed system.  The single glazed system frame may be recessed into the wall giving a modern clean glass to wall break.  If you prefer the more traditional look, the standard frame can be installed in the opening visibly framing the glazing.

The maximum height for the Solare Acoustic Single Glazed Partition System is 12’-0” and maximum panel width is 60”.

The Solare Acoustic Single Glazed Partition System is fully demountable.  It’s components contain recycled material and are infinitely recyclable.  The dry jointed glazed installation does not require the use of adhesives.  The Single Glazed Partition System meets LEED Characteristics.  LEED 2009 (v3):  MRc3, MRc4, MRc5, MRc7, EQc4.2, EQc8.1 and EQc8.2.  LEED v4:  MRc1, MRc3, MRc4, MRc8, EQc2, EQc7 and EQc8.
