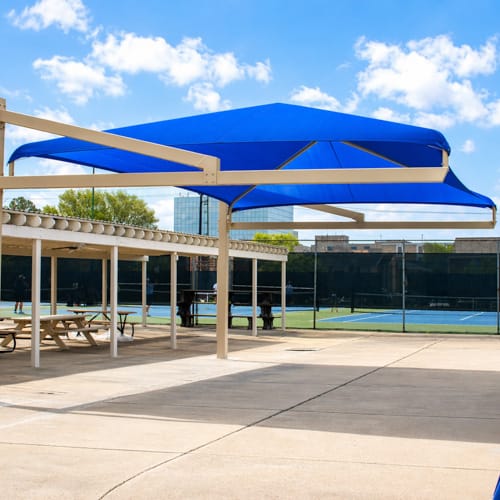

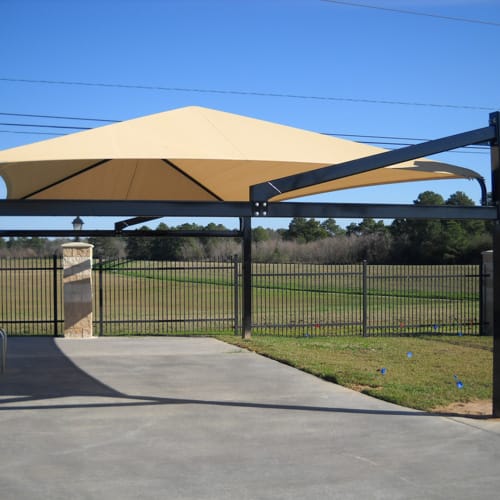

Cantilever Hip Roof Shade 20'x35'
Cantilever Hip Roof Shade 20'x35'
The 20' x 35' Cantilever Hip Roof Shade offers expansive coverage while maintaining a clean and open space beneath the canopy. Supported by two upright structural posts and horizontal cantilever arms, the design reduces the need for columns within the shaded area. It is an excellent solution for larger playgrounds, pool decks, outdoor seating areas, schools, parks, and recreational facilities.Specifications:Shade Fabric Size: 20' x 35'Structural Footprint: Approximately 21' x 36'Eave Height: 8'–16'Support Design: Two upright structural posts with cantilevered horizontal armsMounting Options: Surface Mount or In-Ground MountShade Material: Shadeoline FR / Commercial 95 by Gale PacificUV Protection: Up to 95%Fabric Mass: Minimum 5.8 oz./sq. yd.Tensile Strength: ASTM 5035-95Tensile Strength Rating: Warp 91 lbf/in. / Weft 162 lbf/in.Fabric Life Expectancy: Minimum 8 years of continuous exposureWeatherability: ASTM G53Fire Rating: CA Fire Marshal Title 19Flame Spread: 5Smoke Density: 95Temperature Stability: 13°F–176°FWind Load: Up to 95 mph with 3-second gusts up to 110 mphUpright Posts: 3.5""–12"" round or square carbon steel pipeFrame: Commercial-grade carbon and galvanized steelFinish: TGIC polyester powder coating with zinc-rich epoxy primerFabric Warranty: 5-year conditional warranty plus an additional 5-year prorated warrantySteelwork Warranty: 10 years
Cantilever Hip Roof Shade 20'x35'
Cantilever Hip Roof Shade 20'x35'
The 20' x 35' Cantilever Hip Roof Shade offers expansive coverage while maintaining a clean and open space beneath the canopy. Supported by two upright structural posts and horizontal cantilever arms, the design reduces the need for columns within the shaded area. It is an excellent solution for larger playgrounds, pool decks, outdoor seating areas, schools, parks, and recreational facilities.Specifications:Shade Fabric Size: 20' x 35'Structural Footprint: Approximately 21' x 36'Eave Height: 8'–16'Support Design: Two upright structural posts with cantilevered horizontal armsMounting Options: Surface Mount or In-Ground MountShade Material: Shadeoline FR / Commercial 95 by Gale PacificUV Protection: Up to 95%Fabric Mass: Minimum 5.8 oz./sq. yd.Tensile Strength: ASTM 5035-95Tensile Strength Rating: Warp 91 lbf/in. / Weft 162 lbf/in.Fabric Life Expectancy: Minimum 8 years of continuous exposureWeatherability: ASTM G53Fire Rating: CA Fire Marshal Title 19Flame Spread: 5Smoke Density: 95Temperature Stability: 13°F–176°FWind Load: Up to 95 mph with 3-second gusts up to 110 mphUpright Posts: 3.5""–12"" round or square carbon steel pipeFrame: Commercial-grade carbon and galvanized steelFinish: TGIC polyester powder coating with zinc-rich epoxy primerFabric Warranty: 5-year conditional warranty plus an additional 5-year prorated warrantySteelwork Warranty: 10 years
