Alpine Overhead Doors Counter-Grille™
Alpine Overhead Doors logo

Alpine Overhead Doors

Alpine Overhead Doors, Inc. is an innovative, quality driven US-based manufacturer of rolling doors since 1972. Our success is fueled by a passion for designing doors that are built to perform and to last. We are dedicated exclusively to the rolling door market. Our products can be found across the United States and around the world, serving a wide variety of purposes and environmental challenges. Our production facility currently manufactures over 70 different models, and growing. Alpine is a privately held, family owned company based in New York. We follow a made-to-order production process – crafting each door to the customer’s exact size, specifications and requirements. This hands-on, individual design and manufacturing approach to every job ensures customer satisfaction. Simply, we design each door as a “special project” and not as a replicated product. We source the highest quality metals, materials and components only from established, reputable suppliers – those that closely share our mission and vision.

Alpine Overhead Doors logo

Alpine Overhead Doors

Click to Call

8 Hulse Road, East Setauket, NY, 11733

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files

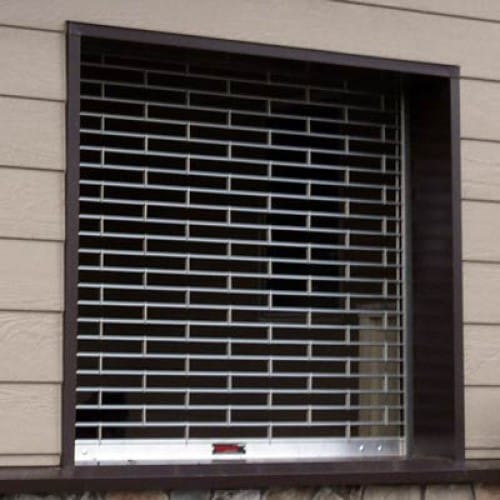

Counter-Grille™  preview 1
Counter-Grille™ Face Mounted to Masonry: Manual Push-Up Operation
Counter-Grille™  preview 1
MFG CAD Preview
Counter-Grille™

Counter-Grille™ Face Mounted to Masonry: Manual Push-Up Operation

Product Features:High quality, space saving rolling shutters at an affordable priceProvides security against theft and vandalism, and ventilation Exposed material is aluminum, horizontal rods have tubular spacers that are either PVC, aluminum or stainless steel6” brick, or straight lattice pattern in 6” or 9”Functional Benefits:Horizontal rods: Solid 5/16” galvanized with option for PVC, Aluminum Anodized or Stainless Steel Sleeves.Vertical spacing: Aluminum or Stainless Steel vertical links, 2” on center.Continuous end links with lock washers are designed to prevent the curtain from leaving the guide rails.Doors can be manual push up, hand crank, hand chain or motor operated. All operators can be adapted to specific conditions. Alpine rolling shutters are highly durable and are designed to withstand heavy commercial use.Provides protection while enhancing the look of the opening it is protecting.Can be installed on the interior, exterior, face of wall or between jambs.
Counter-Grille™

Counter-Grille™ Face Mounted to Masonry: Manual Push-Up Operation

Product Features:High quality, space saving rolling shutters at an affordable priceProvides security against theft and vandalism, and ventilation Exposed material is aluminum, horizontal rods have tubular spacers that are either PVC, aluminum or stainless steel6” brick, or straight lattice pattern in 6” or 9”Functional Benefits:Horizontal rods: Solid 5/16” galvanized with option for PVC, Aluminum Anodized or Stainless Steel Sleeves.Vertical spacing: Aluminum or Stainless Steel vertical links, 2” on center.Continuous end links with lock washers are designed to prevent the curtain from leaving the guide rails.Doors can be manual push up, hand crank, hand chain or motor operated. All operators can be adapted to specific conditions. Alpine rolling shutters are highly durable and are designed to withstand heavy commercial use.Provides protection while enhancing the look of the opening it is protecting.Can be installed on the interior, exterior, face of wall or between jambs.
