Archatrak Pedestals And Pavers Deck Supports: “Incendio” Non-Combustible Steel Pedestal
Archatrak Pedestals And Pavers logo

Archatrak Pedestals And Pavers

Archatrak is a leading national supplier of porcelain pavers, Ipe wood tiles, interlocking tiles and adjustable height pedestals for creating exceptional residential and commercial walkways, patios, balconies, terraces and raised rooftop decks. Our specialty is porcelain, and we stock 50+ colors in styles like wood, stone, rustic and cement, and sizes ranging from cobblestones to 24”x24” and 48" and 94" planks.

Archatrak Pedestals And Pavers logo

Archatrak Pedestals And Pavers

Click to Call

1001 W Oak St Ste 101, Bozeman, MT, 59715

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
Deck Supports: “Incendio” Non-Combustible Steel Pedestal preview 1 Deck Supports: “Incendio” Non-Combustible Steel Pedestal preview 2 Deck Supports: “Incendio” Non-Combustible Steel Pedestal preview 3
"Incendio" Non-Combustible Paver Supports - System Components
Deck Supports: “Incendio” Non-Combustible Steel Pedestal preview 1
Deck Supports: “Incendio” Non-Combustible Steel Pedestal preview 2
Deck Supports: “Incendio” Non-Combustible Steel Pedestal preview 3
CAD Preview
Deck Supports: “Incendio” Non-Combustible Steel Pedestal

"Incendio" Non-Combustible Paver Supports - System Components

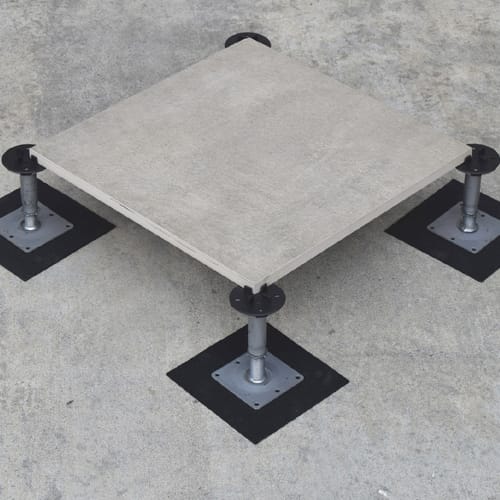

Archatrak “Incendio” non-combustible steel deck supports enable totally non-combustible elevated decks to be constructed on rooftops where strict fire regulations are in force. These solid steel, corrosion resistant, fireproof deck supports incorporate a screwed column which provides incremental height adjustment from 1″ to 19″ across the range of seven models. A locking ring on the screwed column prevents any movement and ensures excellent stability. The 4” x 4” flat steel base distributes the load evenly over roofing membranes, but an optional 9″ x 9″ buffer pad can be supplied if required.  ‘Incendio’ pedestals are also used as an integral component in our wind uplift mitigation system for elevated rooftop decks constructed with porcelain pavers.
Deck Supports: “Incendio” Non-Combustible Steel Pedestal

"Incendio" Non-Combustible Paver Supports - System Components

Archatrak “Incendio” non-combustible steel deck supports enable totally non-combustible elevated decks to be constructed on rooftops where strict fire regulations are in force. These solid steel, corrosion resistant, fireproof deck supports incorporate a screwed column which provides incremental height adjustment from 1″ to 19″ across the range of seven models. A locking ring on the screwed column prevents any movement and ensures excellent stability. The 4” x 4” flat steel base distributes the load evenly over roofing membranes, but an optional 9″ x 9″ buffer pad can be supplied if required.  ‘Incendio’ pedestals are also used as an integral component in our wind uplift mitigation system for elevated rooftop decks constructed with porcelain pavers.
