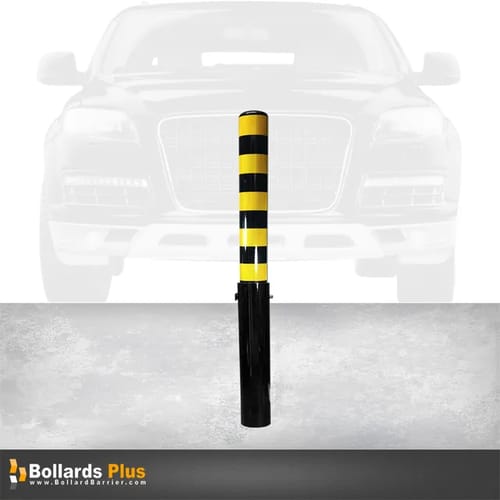

4x72 Arizona Removable Utility Bollard
4x72 Arizona Removable Utility Bollard
Bollards Plus 4”x72” Removable Utility Bollards are an outstanding barrier that complies with TEP and Trico’s mandated specifications, limiting access to dangerous areas such as high voltage equipment and electrical power units while allowing entry to facilitate repairs and maintenance when needed. Installed in concrete, these removable posts feature a 4-inch diameter by 72-inch tall Schedule 40 Carbon Steel pipe and a 5 1/2-inch by 36-inch-long permanent post that is manufactured from Schedule 80+ Carbon Steel, both predrilled with 7/8” holes 33-inches up from the bottom of the sleeve. These holes accommodate a 3/4" round stock bolt (7-inches long) that is also predrilled with a 3/8” hole to accept a lock, increasing stability and ensuring that this equipment barrier remains secured when in use or stored away. Primed and painted a sleek, Gloss Black using our Epoxy Urethane Paint System, the removable post is capped permanently with a welded steel dome cap and has five 4-inch-wide Yellow Reflective Safety Tape strips, each spaced 4-inches apart for enhanced visibility.
4x72 Arizona Removable Utility Bollard
4x72 Arizona Removable Utility Bollard
Bollards Plus 4”x72” Removable Utility Bollards are an outstanding barrier that complies with TEP and Trico’s mandated specifications, limiting access to dangerous areas such as high voltage equipment and electrical power units while allowing entry to facilitate repairs and maintenance when needed. Installed in concrete, these removable posts feature a 4-inch diameter by 72-inch tall Schedule 40 Carbon Steel pipe and a 5 1/2-inch by 36-inch-long permanent post that is manufactured from Schedule 80+ Carbon Steel, both predrilled with 7/8” holes 33-inches up from the bottom of the sleeve. These holes accommodate a 3/4" round stock bolt (7-inches long) that is also predrilled with a 3/8” hole to accept a lock, increasing stability and ensuring that this equipment barrier remains secured when in use or stored away. Primed and painted a sleek, Gloss Black using our Epoxy Urethane Paint System, the removable post is capped permanently with a welded steel dome cap and has five 4-inch-wide Yellow Reflective Safety Tape strips, each spaced 4-inches apart for enhanced visibility.
