Filtrine Manufacturing Company
Founded in 1901, Filtrine is an innovative leader in the design and manufacture of custom-built high-quality stainless steel, bronze, corian and marble drinking water fountains; bottle fillers; drinking water chillers; water purification and filtration systems. Filtrine® products are engineered and built with pride in the USA. Approvals and certifications include NSF/ANSI 372-2011: Drinking Water System Components – Lead Content, ETL Listed (CE Mark Available), and ISO-9001-2008 Certified.

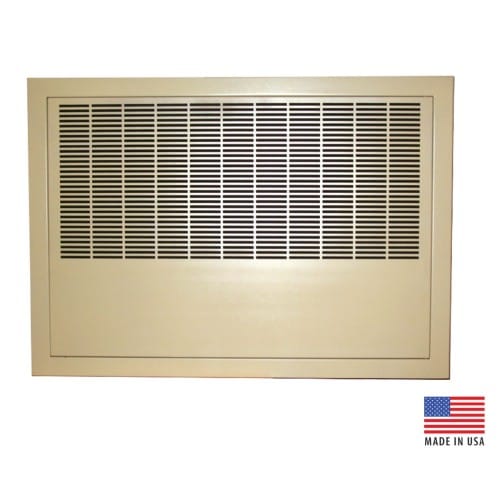

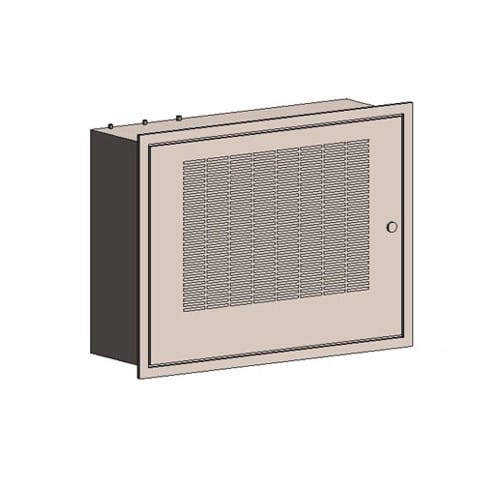

Remote Chillers: ES-2-RF-IW
Remote Chillers: ES-2-RF-IW
Remote in-wall chiller/purifier for serving chilled/purified water to dispensers via a circulating chilled water loop. Dispenses drinking water to multiple outlets under 10-15' away. Includes a 2 gal. storage tank. Serves a population of 100, assuming 1 quart per day per person typical usage.Circulating Pump (HP) N/ACompressor Motor (HP) 1/5Overall Dimensions 32"W x 9-1/2"D x 24"HPersons Served 100Purifier 0.5 micron Taste Master carbon block purifierSupply Power 115/60/1 FLA 6 [Typical]Tank Capacity (Gal) 2Water Conn. (in., FPT) 1/4"
Remote Chillers: ES-2-RF-IW
Remote Chillers: ES-2-RF-IW
Remote in-wall chiller/purifier for serving chilled/purified water to dispensers via a circulating chilled water loop. Dispenses drinking water to multiple outlets under 10-15' away. Includes a 2 gal. storage tank. Serves a population of 100, assuming 1 quart per day per person typical usage.Circulating Pump (HP) N/ACompressor Motor (HP) 1/5Overall Dimensions 32"W x 9-1/2"D x 24"HPersons Served 100Purifier 0.5 micron Taste Master carbon block purifierSupply Power 115/60/1 FLA 6 [Typical]Tank Capacity (Gal) 2Water Conn. (in., FPT) 1/4"
