Haws Corporation Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain
Haws Corporation logo

Haws Corporation

All Haws drinking fountain and electric water cooler models are designed to be lead-free, environmentally safe and meet ADA requirements. Haws Corporation has a registered ISO 9001 Management System. Every product that leaves the Haws plant is of the highest quality and craftsmanship and is built for years of service.

Haws Corporation logo

Haws Corporation

Click to Call

1455 Kleppe Lane, Sparks, NV, 89431-6457

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain preview 1 Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain preview 2
Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain
Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain
Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain
Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain preview 1
Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain preview 2
CAD Preview
MFG CAD Preview

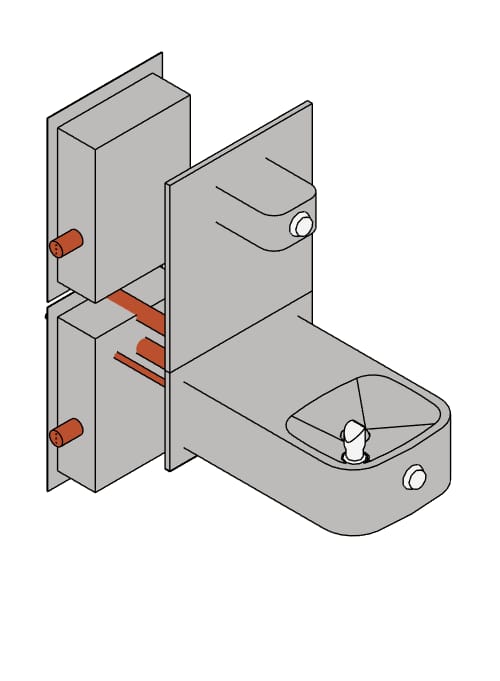

3D Preview
Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain

Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain

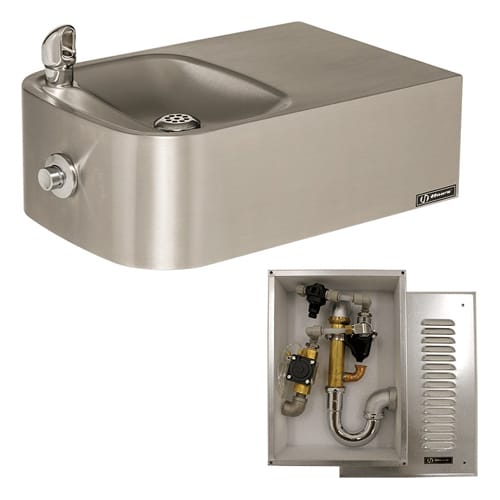

The Haws 1109FRB barrier-free vandal-resistant drinking fountain includes a fully engineered pneumatic operated freeze-resistant valve assembly for continual use during winter months. Wall mounted design allows the unit to be placed securely in multiple locations without taking up excess space. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging vandals.18 gauge Type 304 Stainless Steel design provides a well constructed sturdy fountainVandal resistant components include the bubbler, button, drain and bottom plateValve is installed in an area where the temperature remains at a minimum of 50° F (10° C), this unit will assist the fountain in remaining fully functional in freezing conditionsFlow is easily adjustable with supplied regulator valveIn-wall 3/16" thick steel mounting plate adds extra wall support when mounting the fountainBeautiful satin finish resists stains and corrosionSoft rounded corners prevent mishaps and other accidents that may occur once the fountain is installedOne-piece stamped bowl makes for an aesthetically pleasing and durable designProduct Includes:1109FR Fountain6521FR Freeze Resistant In-Wall Valve6700 In-Wall Mounting PlateModel meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain

Model 1109FRB: ADA Outdoor Freeze-Resistant Vandal-Resistant Fountain

The Haws 1109FRB barrier-free vandal-resistant drinking fountain includes a fully engineered pneumatic operated freeze-resistant valve assembly for continual use during winter months. Wall mounted design allows the unit to be placed securely in multiple locations without taking up excess space. Equipped with vandal resistant components, this fountain is not easily disrupted, quickly discouraging vandals.18 gauge Type 304 Stainless Steel design provides a well constructed sturdy fountainVandal resistant components include the bubbler, button, drain and bottom plateValve is installed in an area where the temperature remains at a minimum of 50° F (10° C), this unit will assist the fountain in remaining fully functional in freezing conditionsFlow is easily adjustable with supplied regulator valveIn-wall 3/16" thick steel mounting plate adds extra wall support when mounting the fountainBeautiful satin finish resists stains and corrosionSoft rounded corners prevent mishaps and other accidents that may occur once the fountain is installedOne-piece stamped bowl makes for an aesthetically pleasing and durable designProduct Includes:1109FR Fountain6521FR Freeze Resistant In-Wall Valve6700 In-Wall Mounting PlateModel meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and 116876 (AB 100) "NSF/ANSI/CAN 61: Q ≤ 1".Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
