Haws Corporation Model 1202SF: Wall Mount Dual ADA Water Cooler
Haws Corporation logo

Haws Corporation

All Haws drinking fountain and electric water cooler models are designed to be lead-free, environmentally safe and meet ADA requirements. Haws Corporation has a registered ISO 9001 Management System. Every product that leaves the Haws plant is of the highest quality and craftsmanship and is built for years of service.

Haws Corporation logo

Haws Corporation

Click to Call

1455 Kleppe Lane, Sparks, NV, 89431-6457

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files

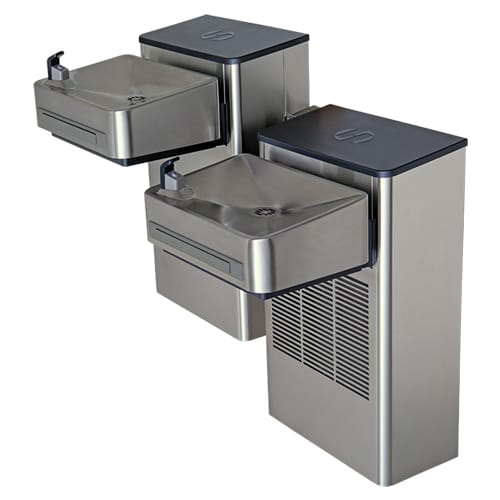

Model 1202SF: Wall Mount Dual ADA Water Cooler preview 1

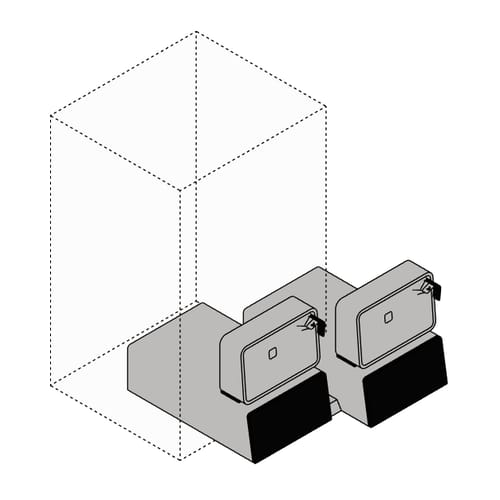

Model 1202SF: Wall Mount Dual ADA Water Cooler
Model 1202SF: Wall Mount Dual ADA Water Cooler
Model 1202SF: Wall Mount Dual ADA Water Cooler preview 1
CAD Preview

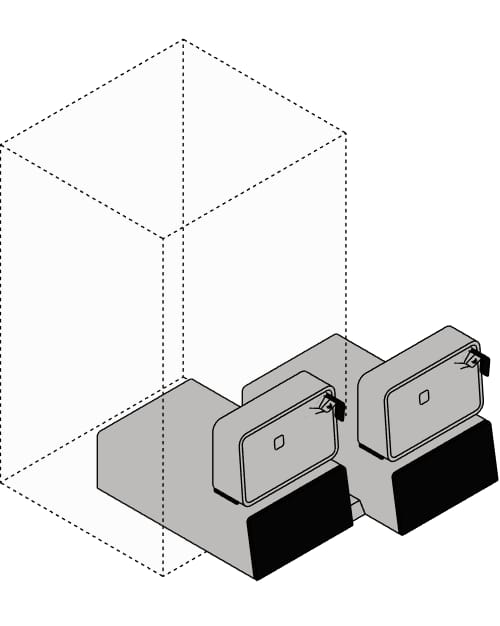

3D Preview
Model 1202SF: Wall Mount Dual ADA Water Cooler

Model 1202SF: Wall Mount Dual ADA Water Cooler

The Haws 1202SF wall-mount filtered Hi-Lo water cooler is the newest addition to the most comprehensive hydration offering in the industry. The modern, innovative design is tailored to meld with office spaces, universities and airports, or serve the functional needs of spaces like a school gymnasium. The Hi-Lo dual station design allows for standard left-side high/right-side low ADA fountain access. The electronic push bar activated solenoid valve provides easy activation, and the pressure-regulating bubbler with a flexible antimicrobial rubber mouth guard requires no adjusting. Fresh, always filtered water with the Electronic Lifecycle Control feature shuts water flow off when filter reaches its gallons capacity. Flow will begin again when filter is replaced.Flexible bubbler mouth guard to protect against injurySelf-regulating flow - no need to adjust to varying incoming water pressuresAnti-rotational screwed-in-place bubbler headEnergy-Efficient Refrigeration Evaporator: Enhanced tankless evaporator coil using thermal mass cooling technology, with 100 percent water content flushed with every useSmart energy savings feature powers down refrigeration system after 2 hours of non-use and the lights are shut off, and will automatically start again when used or light is restored to normalHigh traffic area ready with a 3000-gallon (11,356 L) capacity filterRetrofit installation compatibility over many existing water coolers100% lead free waterwaysUnique basin design reduces water splashing and simplifies cleaningDurable, easy to clean 304 stainless steel skinGalvanized steel frameRated for indoor useDesigned and assembled in the USACSA certified to comply with NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI/CAN 61: Q ≤ 1, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UL 399 and CSA C22.2 No. 120. ADA compliant to ICC A117.1, CSA B651, DOJ s 2010 ADA Standards for Accessible Design when properly installed. ASHRAE 18 compliant chilling capacity of 8.0 gallon per hour of 50 degree drinking water, based on 80 degree inlet water and 90 degree ambient temperature. FCC ID: 2AUAN-1200SF and IC: 25959-1200SF. Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine), and failure to heed these conditions may void warranty.Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
Model 1202SF: Wall Mount Dual ADA Water Cooler

Model 1202SF: Wall Mount Dual ADA Water Cooler

The Haws 1202SF wall-mount filtered Hi-Lo water cooler is the newest addition to the most comprehensive hydration offering in the industry. The modern, innovative design is tailored to meld with office spaces, universities and airports, or serve the functional needs of spaces like a school gymnasium. The Hi-Lo dual station design allows for standard left-side high/right-side low ADA fountain access. The electronic push bar activated solenoid valve provides easy activation, and the pressure-regulating bubbler with a flexible antimicrobial rubber mouth guard requires no adjusting. Fresh, always filtered water with the Electronic Lifecycle Control feature shuts water flow off when filter reaches its gallons capacity. Flow will begin again when filter is replaced.Flexible bubbler mouth guard to protect against injurySelf-regulating flow - no need to adjust to varying incoming water pressuresAnti-rotational screwed-in-place bubbler headEnergy-Efficient Refrigeration Evaporator: Enhanced tankless evaporator coil using thermal mass cooling technology, with 100 percent water content flushed with every useSmart energy savings feature powers down refrigeration system after 2 hours of non-use and the lights are shut off, and will automatically start again when used or light is restored to normalHigh traffic area ready with a 3000-gallon (11,356 L) capacity filterRetrofit installation compatibility over many existing water coolers100% lead free waterwaysUnique basin design reduces water splashing and simplifies cleaningDurable, easy to clean 304 stainless steel skinGalvanized steel frameRated for indoor useDesigned and assembled in the USACSA certified to comply with NSF/ANSI 42, NSF/ANSI 53, NSF/ANSI/CAN 61: Q ≤ 1, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UL 399 and CSA C22.2 No. 120. ADA compliant to ICC A117.1, CSA B651, DOJ s 2010 ADA Standards for Accessible Design when properly installed. ASHRAE 18 compliant chilling capacity of 8.0 gallon per hour of 50 degree drinking water, based on 80 degree inlet water and 90 degree ambient temperature. FCC ID: 2AUAN-1200SF and IC: 25959-1200SF. Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine), and failure to heed these conditions may void warranty.Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
