Haws Corporation Model 9400LPS: AXION® Low Pressure Steam Water Heater
Haws Corporation logo

Haws Corporation

All Haws drinking fountain and electric water cooler models are designed to be lead-free, environmentally safe and meet ADA requirements. Haws Corporation has a registered ISO 9001 Management System. Every product that leaves the Haws plant is of the highest quality and craftsmanship and is built for years of service.

Haws Corporation logo

Haws Corporation

Click to Call

1455 Kleppe Lane, Sparks, NV, 89431-6457

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files
Model 9400LPS: AXION® Low Pressure Steam Water Heater preview 1
Model 9400LPS: AXION® Low Pressure Steam Water Heater
Model 9400LPS: AXION® Low Pressure Steam Water Heater preview 1

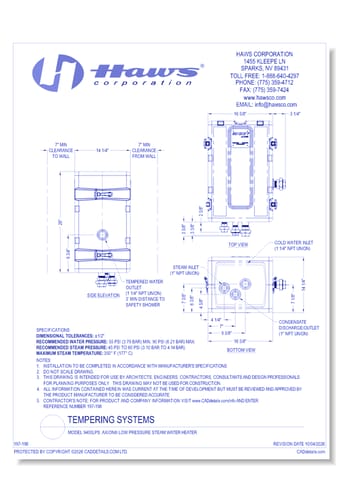

CAD Preview
Model 9400LPS: AXION® Low Pressure Steam Water Heater

Model 9400LPS: AXION® Low Pressure Steam Water Heater

The Haws 9400LPS AXION® Low Pressure Steam Water Heater replaces hot water tanks when pressurized steam is available. When an emergency shower or eyewash is activated, the flow of water opens a steam control valve. The steam enters a brazed plate heat exchanger, instantly heating the water. This mixing valve blends hot and cold water to produce an output of 80° F (27° C) tepid water. Additional valves keep the system preheated, freeze protected and scald protected. The steam valve will remain closed should there be a loss of water pressure. This station complies with the ANSI Z358.1 standard and mixing valve is designed to meet ASSE 1071For important installation information, please read Scald Warning.Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
Model 9400LPS: AXION® Low Pressure Steam Water Heater

Model 9400LPS: AXION® Low Pressure Steam Water Heater

The Haws 9400LPS AXION® Low Pressure Steam Water Heater replaces hot water tanks when pressurized steam is available. When an emergency shower or eyewash is activated, the flow of water opens a steam control valve. The steam enters a brazed plate heat exchanger, instantly heating the water. This mixing valve blends hot and cold water to produce an output of 80° F (27° C) tepid water. Additional valves keep the system preheated, freeze protected and scald protected. The steam valve will remain closed should there be a loss of water pressure. This station complies with the ANSI Z358.1 standard and mixing valve is designed to meet ASSE 1071For important installation information, please read Scald Warning.Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm. Please click here for more information.
