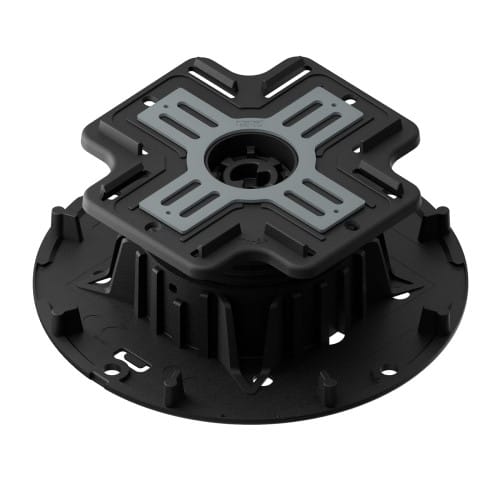

LevelPro - LPC401-405 Pedestal Support w/ Cross Rail Headpiece (1" - 5")
LevelPro Pedestal - Cross Rail Head preview 1
LevelPro Pedestal - Cross Rail Head preview 2
LevelPro Pedestal - Cross Rail Head preview 3
LevelPro Pedestal - Cross Rail Head preview 4
LevelPro Pedestal - Cross Rail Head preview 5
CAD Preview
LevelPro Pedestal - Cross Rail Head

LevelPro - LPC401-405 Pedestal Support w/ Cross Rail Headpiece (1" - 5")

WITH LEVEL PRO SUPPORTS THE REVOLUTION IS AVAILABLE TO ANYONE. THANKS TO A SYSTEM THAT COVERS THE HEIGHTS FROM 1 TO 40 INCHES AND VERSATILE HEADS WHICH CAN AUTOMATICALLY ADJUST THE SLOPE OF IRREGULAR LAYING SURFACE OR BE SECURELY LOCKED TO ENSURE THE STABILITY IN THE MOST COMPLEX INSTALLATION.The innovative Level Pro Cross Rail Head ranges from 1 to 40 inches and, thanks to the revolutionary system “All in one”, the head can be used to automatically adjust the slope up to 5% or to be tightly locked for all the situations which require a greater stability, as for the perimetral laying of small-format tiles. By inserting a little ring nut close the head, tilting movement at the base of the slope self-adjustment system can be firmly blocked. Level Pro is proposed as the most versatile and easiest to install product on the market thanks to its multiple advantages like:automatically adjustment of the slope up to 5% (with the possibility of reaching up to 10% using our slope correctors)regulation of heights from 1 to 40 inches with a reduced number of itemssetting from above by using the resistant topkey (compatible with 0.16 version)and its large range of heads for tile and deckingTile heads, with 0.078 and 0.125 tabs, as all the heads of decking line, are equipped with rotation lock to allow the regulation of the height directly from the support base. In this case it’s possible to insert the ring nut to lock the head’s tilting movement. The head with Easy Click fixing is also available for the new Level Pro too, for a quick coupling with the aluminum joists of the Rail System.
LevelPro Pedestal - Cross Rail Head

LevelPro - LPC401-405 Pedestal Support w/ Cross Rail Headpiece (1" - 5")

WITH LEVEL PRO SUPPORTS THE REVOLUTION IS AVAILABLE TO ANYONE. THANKS TO A SYSTEM THAT COVERS THE HEIGHTS FROM 1 TO 40 INCHES AND VERSATILE HEADS WHICH CAN AUTOMATICALLY ADJUST THE SLOPE OF IRREGULAR LAYING SURFACE OR BE SECURELY LOCKED TO ENSURE THE STABILITY IN THE MOST COMPLEX INSTALLATION.The innovative Level Pro Cross Rail Head ranges from 1 to 40 inches and, thanks to the revolutionary system “All in one”, the head can be used to automatically adjust the slope up to 5% or to be tightly locked for all the situations which require a greater stability, as for the perimetral laying of small-format tiles. By inserting a little ring nut close the head, tilting movement at the base of the slope self-adjustment system can be firmly blocked. Level Pro is proposed as the most versatile and easiest to install product on the market thanks to its multiple advantages like:automatically adjustment of the slope up to 5% (with the possibility of reaching up to 10% using our slope correctors)regulation of heights from 1 to 40 inches with a reduced number of itemssetting from above by using the resistant topkey (compatible with 0.16 version)and its large range of heads for tile and deckingTile heads, with 0.078 and 0.125 tabs, as all the heads of decking line, are equipped with rotation lock to allow the regulation of the height directly from the support base. In this case it’s possible to insert the ring nut to lock the head’s tilting movement. The head with Easy Click fixing is also available for the new Level Pro too, for a quick coupling with the aluminum joists of the Rail System.
