RJ Thomas Mfg. Co. / Pilot Rock Campfire Rings: Double Wall Firering with Optional Angle Spade Anchors ( LDW-36/18/AL )
RJ Thomas Mfg. Co. / Pilot Rock logo

RJ Thomas Mfg. Co. / Pilot Rock

R.J. Thomas Mfg. Co. makes the Pilot Rock brand of park, street & camp site equipment including: park & athletic benches, picnic tables, trash receptacles, bear proof trash receptacles & food lockers, bike racks, utility tables, lantern poles, charcoal grills, campfire rings, planters, wayfinding signs, custom signs & banners, ADA compliant products. Made in the USA since 1959.

RJ Thomas Mfg. Co. / Pilot Rock logo

RJ Thomas Mfg. Co. / Pilot Rock

Click to Call

PO Box 946, Cherokee, IA, 51012-0946

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files

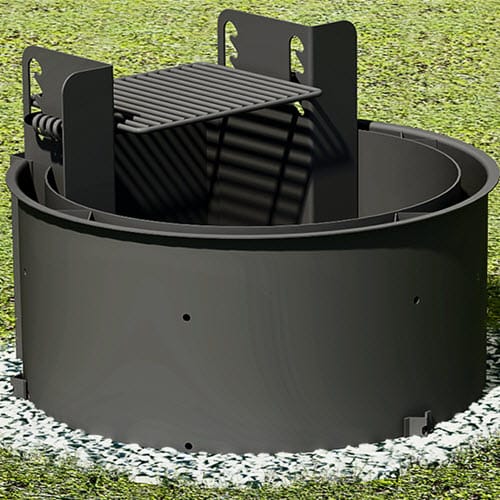

Campfire Rings: Double Wall Firering with Optional Angle Spade Anchors ( LDW-36/18/AL ) preview 1
Campfire Rings: Double Wall Firering with Optional Angle Spade Anchors ( LDW-36/18/AL )
Campfire Rings: Double Wall Firering with Optional Angle Spade Anchors ( LDW-36/18/AL ) preview 1
CAD Preview
Campfire Rings: Double Wall Firering with Optional Angle Spade Anchors ( LDW-36/18/AL )

Campfire Rings: Double Wall Firering with Optional Angle Spade Anchors ( LDW-36/18/AL )

Accessible campfire ring Model LDW-36/18/TB includes a full-height outer ring to serve as a heat barrier for the inner ring.  It also features a 300 sq. inch 4-level adjustable cooking grate.  It also features a flat rear panel so wheelchairs can have closer access to the cooking grate and adjustment handles.  The 300 sq. inch cooking grate adjusts to 4 levels between 19" and 24" above the ground.  This fire ring design allows the grate to be adjusted one side at a time, using only one hand; without tight grasping, pinching or twisting of the wrist; and does not exceed 10 lbs. to lift.Construction features include: 1/8” (10 ga.) outer ring with 1” formed top flange, 3/16” (7 ga.) inner ring, 17-3/8” tall fire barrier.  Three formed steel angles welded between rings form a 2” wide air space.  Both rings include a series of 1” dia. (nom.) drain and draft holes.  The 3/16” thick steel panels support the cooking grate in 4 locations and help shield the grate handles from heat.  The cooking grate is all welded ½” dia. steel bars supported by 5/8” dia. handlebars, with 1/8” x ½” coiled flat steel bar handle grips.  All grate bars are welded on both sides.Model LDW-36 includes two tip back anchor pins to secure ring in place but allow ring to tip up for clean out (do not use aggregate fill).  Tip back anchors must be set in concrete.  The other anchor system available (tip back angle spades) allows for clean out without the anchors needing to be set in concrete.  The entire unit is finished with high temp non-toxic black enamel paint.OPTIONAL: Bolt-on utility shelf Model S5OPTIONAL: Angle spade anchors - ring will not tip up (so use aggregate fill to raise the fire bed to just below the drain/draft holes).
Campfire Rings: Double Wall Firering with Optional Angle Spade Anchors ( LDW-36/18/AL )

Campfire Rings: Double Wall Firering with Optional Angle Spade Anchors ( LDW-36/18/AL )

Accessible campfire ring Model LDW-36/18/TB includes a full-height outer ring to serve as a heat barrier for the inner ring.  It also features a 300 sq. inch 4-level adjustable cooking grate.  It also features a flat rear panel so wheelchairs can have closer access to the cooking grate and adjustment handles.  The 300 sq. inch cooking grate adjusts to 4 levels between 19" and 24" above the ground.  This fire ring design allows the grate to be adjusted one side at a time, using only one hand; without tight grasping, pinching or twisting of the wrist; and does not exceed 10 lbs. to lift.Construction features include: 1/8” (10 ga.) outer ring with 1” formed top flange, 3/16” (7 ga.) inner ring, 17-3/8” tall fire barrier.  Three formed steel angles welded between rings form a 2” wide air space.  Both rings include a series of 1” dia. (nom.) drain and draft holes.  The 3/16” thick steel panels support the cooking grate in 4 locations and help shield the grate handles from heat.  The cooking grate is all welded ½” dia. steel bars supported by 5/8” dia. handlebars, with 1/8” x ½” coiled flat steel bar handle grips.  All grate bars are welded on both sides.Model LDW-36 includes two tip back anchor pins to secure ring in place but allow ring to tip up for clean out (do not use aggregate fill).  Tip back anchors must be set in concrete.  The other anchor system available (tip back angle spades) allows for clean out without the anchors needing to be set in concrete.  The entire unit is finished with high temp non-toxic black enamel paint.OPTIONAL: Bolt-on utility shelf Model S5OPTIONAL: Angle spade anchors - ring will not tip up (so use aggregate fill to raise the fire bed to just below the drain/draft holes).
