Campfire Rings: Fire Barrier Multilevel Firering with Tip Back Anchors ( L-32 )
Campfire Rings: Fire Barrier Multilevel Firering with Tip Back Anchors ( L-32 )

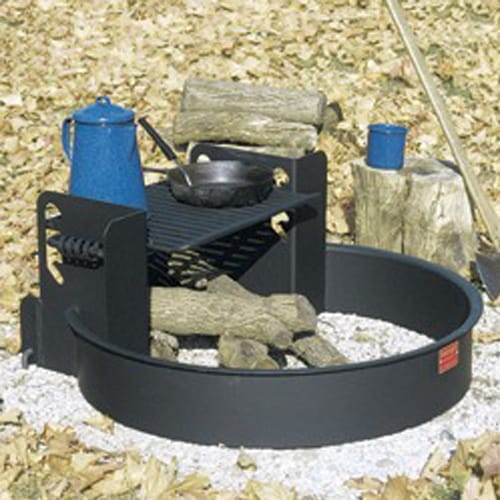

Model L-32 campfire ring features a 300 sq. inch cooking grate that adjusts to 4 levels, from 2" to 8" above the ring height. Construction includes 3/16" thick steel for the ring and adjustment panels. The 1" formed flange reinforces the ring. The 300 sq. inch cooking grate is welded together using 5/8" dia. handle/support bars with coiled steel grips, and 1/2" grate bars. All grate bars are welded on both sides. Tip back anchor pins (/TB) secure the campfire ring in place and allow it to tip up for easy clean up. Anchor pins must be set in concrete. Finished with high temp non-toxic black enamel paint.OPTIONAL Anchor Systems:Tip Back Spade Anchors (/TA) are 2 spades at the rear hinge point and buried in the ground. The firering can be tipped up.OPTIONAL: Model S-5 Bolt-on Utility Shelf
Campfire Rings: Fire Barrier Multilevel Firering with Tip Back Anchors ( L-32 )
Campfire Rings: Fire Barrier Multilevel Firering with Tip Back Anchors ( L-32 )
Model L-32 campfire ring features a 300 sq. inch cooking grate that adjusts to 4 levels, from 2" to 8" above the ring height. Construction includes 3/16" thick steel for the ring and adjustment panels. The 1" formed flange reinforces the ring. The 300 sq. inch cooking grate is welded together using 5/8" dia. handle/support bars with coiled steel grips, and 1/2" grate bars. All grate bars are welded on both sides. Tip back anchor pins (/TB) secure the campfire ring in place and allow it to tip up for easy clean up. Anchor pins must be set in concrete. Finished with high temp non-toxic black enamel paint.OPTIONAL Anchor Systems:Tip Back Spade Anchors (/TA) are 2 spades at the rear hinge point and buried in the ground. The firering can be tipped up.OPTIONAL: Model S-5 Bolt-on Utility Shelf
