RJ Thomas Mfg. Co. / Pilot Rock Campfire Rings: Wheelchair Accessible Firering ( M-32/17/PA )
RJ Thomas Mfg. Co. / Pilot Rock logo

RJ Thomas Mfg. Co. / Pilot Rock

R.J. Thomas Mfg. Co. makes the Pilot Rock brand of park, street & camp site equipment including: park & athletic benches, picnic tables, trash receptacles, bear proof trash receptacles & food lockers, bike racks, utility tables, lantern poles, charcoal grills, campfire rings, planters, wayfinding signs, custom signs & banners, ADA compliant products. Made in the USA since 1959.

RJ Thomas Mfg. Co. / Pilot Rock logo

RJ Thomas Mfg. Co. / Pilot Rock

Click to Call

PO Box 946, Cherokee, IA, 51012-0946

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files

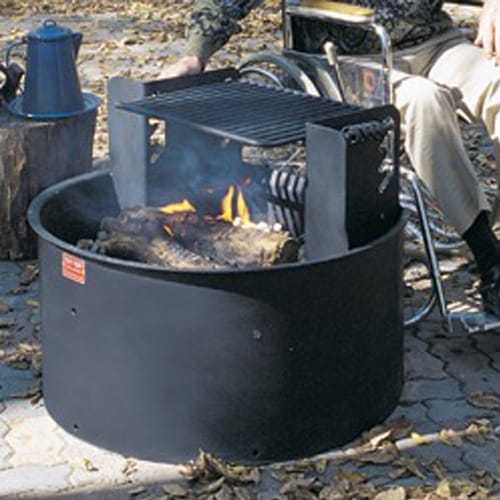

Campfire Rings: Wheelchair Accessible Firering ( M-32/17/PA ) preview 1
Campfire Rings: Wheelchair Accessible Firering ( M-32/17/PA )
Campfire Rings: Wheelchair Accessible Firering ( M-32/17/PA ) preview 1
CAD Preview
Campfire Rings: Wheelchair Accessible Firering ( M-32/17/PA )

Campfire Rings: Wheelchair Accessible Firering ( M-32/17/PA )

Model M-32 accessible campfire ring features a flat rear panel so wheelchairs can have closer access to the cooking grate and adjustment handles.  The 300 sq. inch cooking grate adjusts to 4 levels between 19" and 24" above the ground. This fire ring design allows the grate to be adjusted one side at a time, using only one hand; without tight grasping, pinching or twisting of the wrist; and does not exceed 10 lbs. to lift.The fire ring is rolled using 3/16" thick steel, with 1" formed flange for strength and safety.  The adjustment panels are cut from 3/16" steel, and also serve as heat shields for the grate handles.  The 300 sq. inch cooking grate is welded together using 5/8" dia. handle/support bars and 1/2" dia. grate bars, and includes handle grips of 1/8" x 1/2" coiled steel.  All grate bars are welded on both sides.  The finish is high temp non-toxic black enamel paint.  Pin anchors provide a fixed location and must be set in concrete.The fire ring is filled with aggregate (not included) to about 10-1/2" deep to provide the elevated fire surface.  This fill also insulates the ground to reduce the chance of root fires in heavily wooded areas.  Drain/draft holes are provided around the perimeter of the fire ring.OPTIONAL: Bolt-on utility shelf Model S5OPTIONAL: Heat shield.
Campfire Rings: Wheelchair Accessible Firering ( M-32/17/PA )

Campfire Rings: Wheelchair Accessible Firering ( M-32/17/PA )

Model M-32 accessible campfire ring features a flat rear panel so wheelchairs can have closer access to the cooking grate and adjustment handles.  The 300 sq. inch cooking grate adjusts to 4 levels between 19" and 24" above the ground. This fire ring design allows the grate to be adjusted one side at a time, using only one hand; without tight grasping, pinching or twisting of the wrist; and does not exceed 10 lbs. to lift.The fire ring is rolled using 3/16" thick steel, with 1" formed flange for strength and safety.  The adjustment panels are cut from 3/16" steel, and also serve as heat shields for the grate handles.  The 300 sq. inch cooking grate is welded together using 5/8" dia. handle/support bars and 1/2" dia. grate bars, and includes handle grips of 1/8" x 1/2" coiled steel.  All grate bars are welded on both sides.  The finish is high temp non-toxic black enamel paint.  Pin anchors provide a fixed location and must be set in concrete.The fire ring is filled with aggregate (not included) to about 10-1/2" deep to provide the elevated fire surface.  This fill also insulates the ground to reduce the chance of root fires in heavily wooded areas.  Drain/draft holes are provided around the perimeter of the fire ring.OPTIONAL: Bolt-on utility shelf Model S5OPTIONAL: Heat shield.
