Quickflash Weatherproofing Products, Inc. P-50 GW PLUMBING, GAS & HVAC FLASHING PANEL w/ Ground Wire
Quickflash Weatherproofing Products, Inc. logo

Quickflash Weatherproofing Products, Inc.

Quickflash Weatherproofing Panels provide an easy and affordable solutions to water damage and leaks which have become a growing and costly problem to builders, architects, insurance companies, and homeowners. These Quickflash panels complete the building envelope system and offer a no caulk friction seal for reducing liability for moisture intrusion, creating an air barrier, and even preventing insect infestation through the penetrations or protrusions. Due to the fact that caulking breaks down over time, incomplete and improper caulking is one of the main sources of water intrusions and proper sealing is key.

Quickflash Weatherproofing Products, Inc. logo

Quickflash Weatherproofing Products, Inc.

Click to Call

4129 Wagon Trail Ave., Las Vegas, NV, 89118

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files

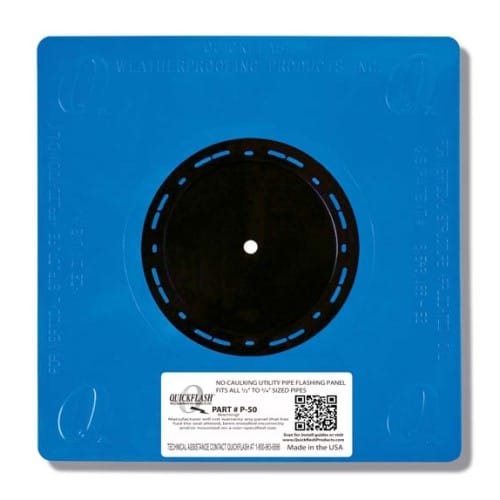

P-50 GW PLUMBING, GAS & HVAC FLASHING PANEL w/ Ground Wire preview 1
P-50 GW Plumbing, Gas & HVAC Flashing Panel w/ Ground Wire
P-50 GW PLUMBING, GAS & HVAC FLASHING PANEL w/ Ground Wire preview 1
CAD Preview
P-50 GW PLUMBING, GAS & HVAC FLASHING PANEL w/ Ground Wire

P-50 GW Plumbing, Gas & HVAC Flashing Panel w/ Ground Wire

Fits 1/2" to 3/4" sized pipes - copper, rigid, and PVC with separate Ground WireNOTE: also used with electrical pipes through brick and stone veneers11 1/8" x 11 1/8" x 3/32" (sold in boxes of 12 or 24 only)
P-50 GW PLUMBING, GAS & HVAC FLASHING PANEL w/ Ground Wire

P-50 GW Plumbing, Gas & HVAC Flashing Panel w/ Ground Wire

Fits 1/2" to 3/4" sized pipes - copper, rigid, and PVC with separate Ground WireNOTE: also used with electrical pipes through brick and stone veneers11 1/8" x 11 1/8" x 3/32" (sold in boxes of 12 or 24 only)
