rFoil / Covertech 1620 Series: Ultra CBF Insulation
rFoil / Covertech logo

rFoil / Covertech

Covertech Flexible Packaging provides innovative and cost-effective insulation solutions. Established in 1990, Covertech produces and distributes quality reflective insulation and radiant barrier products. rFOIL Reflective Insulation is a Patented Technology designed to control heat gain/loss while preventing interior condensation in all types of residential and commercial building applications. rFOIL blocks up to 96% of radiant heat transfer, passes NFPA 286 testing, is CLASS 1/A Fire Rated and UV-resistant as well as puncture and tear resistant. rFOIL products are designed for insulating walls, ceilings, roofs, ducts, under concrete and all types of radiant barrier applications.

rFoil / Covertech logo

rFoil / Covertech

Click to Call

279 Humberline Drive, Etobicoke, Ontario, M9W 5T6

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files

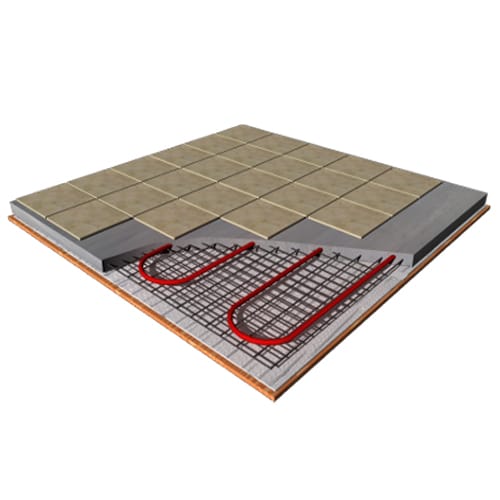

1620 Series: Ultra CBF Insulation preview 1
1620 Series: Under Concrete Slab
1620 Series: Ultra CBF Insulation preview 1
CAD Preview
1620 Series: Ultra CBF Insulation

1620 Series: Under Concrete Slab

Our rFOIL 1620 Ultra CBF series is made extra tough for over slabs (as a concrete underlayment) and under flooring. It provides exceptional thermal value and a strong, permanent vapor and radon barrier. Because radiant heat loss is reduced, floors are warmer and more comfortable. Ultra CBF consists of a single layer reflective sheet laminated between two layers of ultra-strong polyethylene bubble. At a compression strength of 140 psi Ultra CBF is our recommended product to install beneath a concrete slab or as part of an in-floor radiant heating system to make it more efficient. Ultra CBF offers superior puncture resistance and tear strength and withstands job site traffic. Ultra CBF conforms around plumbing, wiring and other obstructions and easily installs over any grade. Compared to rigid PE board insulation, Ultra CBF is easier to handle, cut, and install AND has nearly six times the compression strength.
1620 Series: Ultra CBF Insulation

1620 Series: Under Concrete Slab

Our rFOIL 1620 Ultra CBF series is made extra tough for over slabs (as a concrete underlayment) and under flooring. It provides exceptional thermal value and a strong, permanent vapor and radon barrier. Because radiant heat loss is reduced, floors are warmer and more comfortable. Ultra CBF consists of a single layer reflective sheet laminated between two layers of ultra-strong polyethylene bubble. At a compression strength of 140 psi Ultra CBF is our recommended product to install beneath a concrete slab or as part of an in-floor radiant heating system to make it more efficient. Ultra CBF offers superior puncture resistance and tear strength and withstands job site traffic. Ultra CBF conforms around plumbing, wiring and other obstructions and easily installs over any grade. Compared to rigid PE board insulation, Ultra CBF is easier to handle, cut, and install AND has nearly six times the compression strength.
