Solus Decor Fireplace Surrounds: The Fraser Mantel
Solus Decor logo

Solus Decor

Solus Decor designs and manufacturers the world's finest contemporary fire pits, fireplace surrounds/mantels, concrete wall panels and now water features. Exceptional design, outstanding quality and totally appropriate for any fireplace setting. Solus concrete is made of the highest performance concrete imaginable and made here in North America. Solus products are found in the some of the finest homes, restaurants, commercial interiors and resorts around the world.

Solus Decor logo

Solus Decor

Click to Call

109 Braid Street - Building C, New Westminster, BC, V3L 5H4

Website

Download files for this product
Log in or create a free account to continue
  • Free, unlimited downloads
  • All formats: CAD, Revit, 3D, Specs
  • Manufacturer-provided, up-to-date files

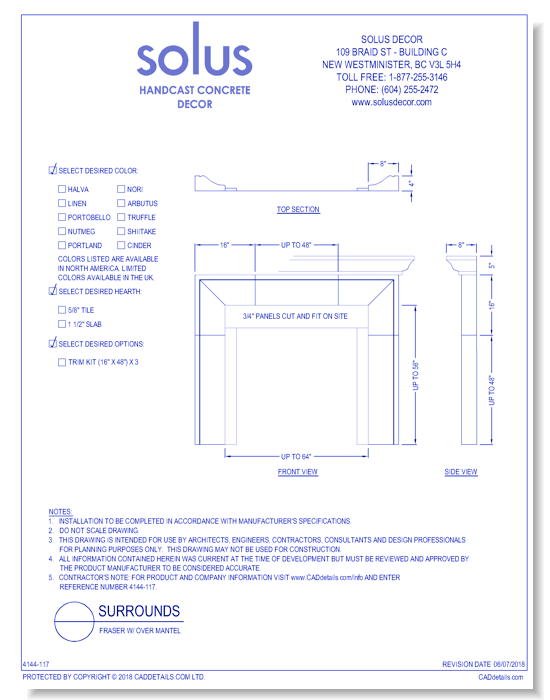

Fireplace Surrounds: The Fraser Mantel preview 1
Fraser w/ Over Mantel Fire Surround
Fraser w/ Over Mantel Fire Surround

Fireplace Surrounds: The Fraser Mantel preview 1
CAD Preview
3D Preview
Fireplace Surrounds: The Fraser Mantel

Fraser w/ Over Mantel Fire Surround

The addition of a mantel to the original Fraser results in a fireplace surround that has a very different character. With its curved, upturned mantelpiece the surround possesses an elegant, traditional feel that can be adapted to suit a range of design sensibilities. As with the Fraser, the mantel version is designed to be adjustable. Each one comes standard with 2 corner pieces, two mantel end-pieces and 4 straight sections that can be cut to size on site. Additional leg, mantel and top sections can be added to increase height and width. This versatile fireplace surround can be used in conjunction with our tiles, panels and hearths to create a wide variety of layouts. Appropriate for use in residential and commercial projects – indoors and out.The Fraser mantel is a unique fireplace surround to hang. It requires detailed planning prior to the installation. For a full installation guide see our installation video and instructions. Solus fireplace mantels and surrounds are sold throughout North America and now available to the UK and European offices of Solus.Maximum opening size: 64″
Fireplace Surrounds: The Fraser Mantel

Fraser w/ Over Mantel Fire Surround

The addition of a mantel to the original Fraser results in a fireplace surround that has a very different character. With its curved, upturned mantelpiece the surround possesses an elegant, traditional feel that can be adapted to suit a range of design sensibilities. As with the Fraser, the mantel version is designed to be adjustable. Each one comes standard with 2 corner pieces, two mantel end-pieces and 4 straight sections that can be cut to size on site. Additional leg, mantel and top sections can be added to increase height and width. This versatile fireplace surround can be used in conjunction with our tiles, panels and hearths to create a wide variety of layouts. Appropriate for use in residential and commercial projects – indoors and out.The Fraser mantel is a unique fireplace surround to hang. It requires detailed planning prior to the installation. For a full installation guide see our installation video and instructions. Solus fireplace mantels and surrounds are sold throughout North America and now available to the UK and European offices of Solus.Maximum opening size: 64″
