Superior Radiant Products
Superior Radiant Products is an industry leader in the design and manufacture of energy efficient infrared heating solutions and is dedicated to providing superior technology and superior performance. Located in U.S.A., Canada, and China, SRP offers a complete range of gas-fired low and high-intensity infrared heaters for industrial, commercial, agricultural and residential applications worldwide.
Series TVX

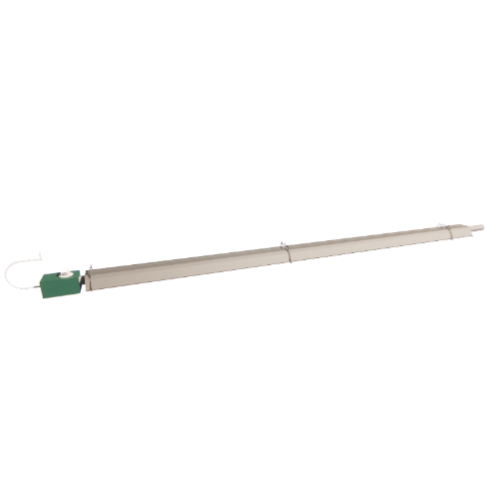

Negative Pressure Infrared Heater - Series TVX
The Series TVX negative pressure multi-burner system was designed to use two or more radiant tube heaters in a variety of applications, these systems offer significant operating benefits that are not easily obtainable with traditional infrared tube heaters.Flexible layouts (Herringbone, Fork, "T", Flag, etc.) can be adapted to fit a wide range of applications heating and space requirements. Available input rates 60 / 80 / 100 / 125 / 150 / 175 / 205 / 220 MBH all featuring a two-stage configuration.FeaturesInput rates 60 to 220 MBHLengths – from 20’ to 60’Two-stage for comfort control100% efficient reflectorSealed burner box3 try ignitionIntegral safety switchSimple controlsMulti-zone capabilityState-of-the-art pump with ECM motorUp to 525 MBH on single vent penetrationEasy setup and commissioningStandard gas flex and shut off valve are usedInstallation benefits – fewer vents neededOptional Equipment:- Elbows, Utube, outside air kit- Side shields, deco grille, bottom shield
Series TVX
Negative Pressure Infrared Heater - Series TVX
The Series TVX negative pressure multi-burner system was designed to use two or more radiant tube heaters in a variety of applications, these systems offer significant operating benefits that are not easily obtainable with traditional infrared tube heaters.Flexible layouts (Herringbone, Fork, "T", Flag, etc.) can be adapted to fit a wide range of applications heating and space requirements. Available input rates 60 / 80 / 100 / 125 / 150 / 175 / 205 / 220 MBH all featuring a two-stage configuration.FeaturesInput rates 60 to 220 MBHLengths – from 20’ to 60’Two-stage for comfort control100% efficient reflectorSealed burner box3 try ignitionIntegral safety switchSimple controlsMulti-zone capabilityState-of-the-art pump with ECM motorUp to 525 MBH on single vent penetrationEasy setup and commissioningStandard gas flex and shut off valve are usedInstallation benefits – fewer vents neededOptional Equipment:- Elbows, Utube, outside air kit- Side shields, deco grille, bottom shield
- About
Asset Category Filters:
- Select All

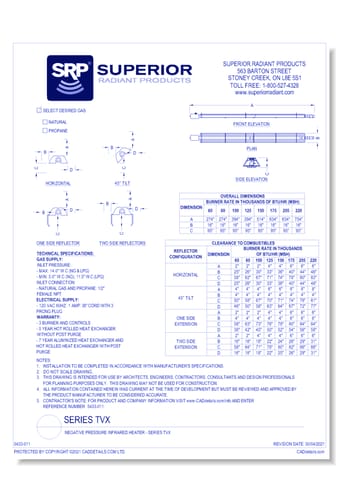

- CAD PDF
