Tubelite
Since 1945, Tubelite has fabricated and distributed aluminum entrance, storefront, curtainwall, and ribbon window systems for the commercial building industry. Tubelite recognizes the importance of construction project schedules, and have built a reputation for being the most dependable supplier in the industry.

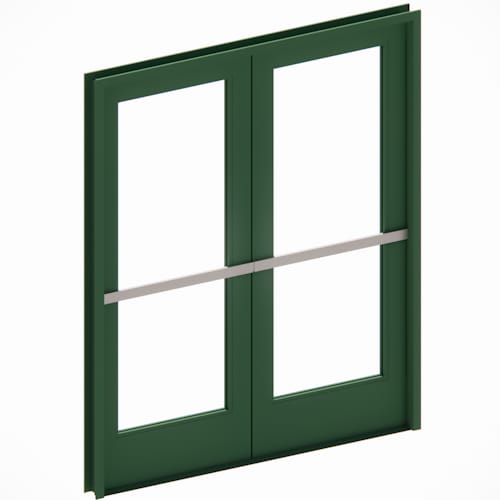

ForceFront Storm® Standard Wide Stile Entrance
ForceFront Storm® Standard Wide Stile Entrance
Designed for hurricane resistance in retail, office, healthcare, education and other commercial buildings with moderate to heavy traffic, Tubelite ForceFront® Storm (FFS) Standard Wide Stile Entrance systems:Have been Florida Product Approved and are pending Texas Department of Insurance approvalComply with Hurricane Wind Zone 3 large missile impact and cycling for missile levels C, D and E [ASTM E1886/E1996, TAS 201 and TAS 203]Have a 70 psf Design Pressure rating and provide forced-entry resistanceThese hurricane-resistant entrances feature:3′ by 9′ or 4′ by 8′ single doors with tie-rod construction1-3/4″ by 5″ vertical stiles and top rail10″ bottom rail for ADA compliance, 6-1/2″ or 7-1/2″ options availableAllowance for several thicknesses of laminated glazing and laminated IGUsA choice of glazing methods, sills, mid-rails and hardwareTubelite architectural aluminum entrances use a steel tie rod construction that is both strong and flexible, and backed with a lifetime warranty. This tie rod assembly is as durable as welded corner construction, but also lets you modify, disassemble or resize the doors on site.Our entrance systems easily integrate with Tubelite hurricane impact-resistant storefront and curtain wall systems. Durable anodized and painted finishes provide long-lasting protection and color options.
ForceFront Storm® Standard Wide Stile Entrance
ForceFront Storm® Standard Wide Stile Entrance
Designed for hurricane resistance in retail, office, healthcare, education and other commercial buildings with moderate to heavy traffic, Tubelite ForceFront® Storm (FFS) Standard Wide Stile Entrance systems:Have been Florida Product Approved and are pending Texas Department of Insurance approvalComply with Hurricane Wind Zone 3 large missile impact and cycling for missile levels C, D and E [ASTM E1886/E1996, TAS 201 and TAS 203]Have a 70 psf Design Pressure rating and provide forced-entry resistanceThese hurricane-resistant entrances feature:3′ by 9′ or 4′ by 8′ single doors with tie-rod construction1-3/4″ by 5″ vertical stiles and top rail10″ bottom rail for ADA compliance, 6-1/2″ or 7-1/2″ options availableAllowance for several thicknesses of laminated glazing and laminated IGUsA choice of glazing methods, sills, mid-rails and hardwareTubelite architectural aluminum entrances use a steel tie rod construction that is both strong and flexible, and backed with a lifetime warranty. This tie rod assembly is as durable as welded corner construction, but also lets you modify, disassemble or resize the doors on site.Our entrance systems easily integrate with Tubelite hurricane impact-resistant storefront and curtain wall systems. Durable anodized and painted finishes provide long-lasting protection and color options.
