UrbanPond® - Concrete Stormwater Detention

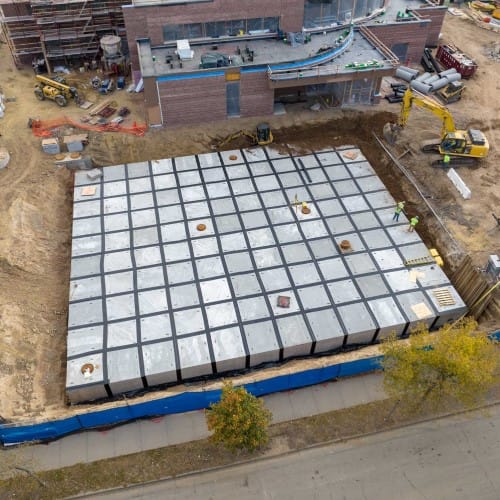

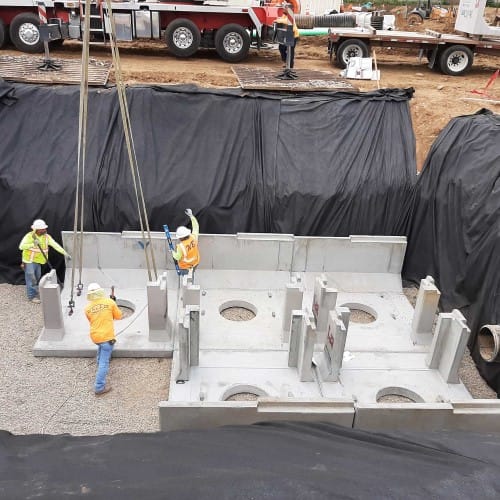

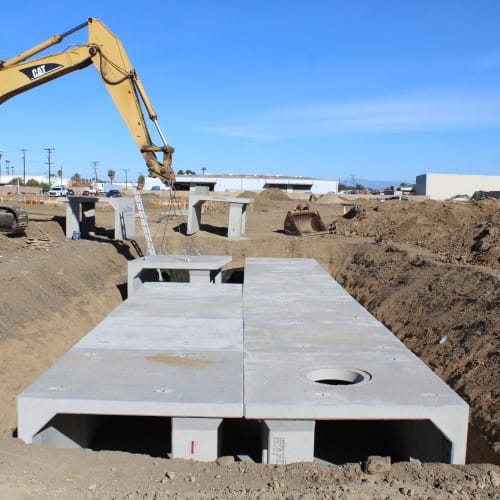

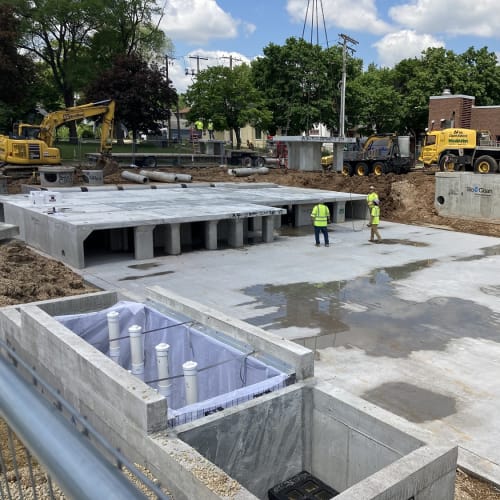

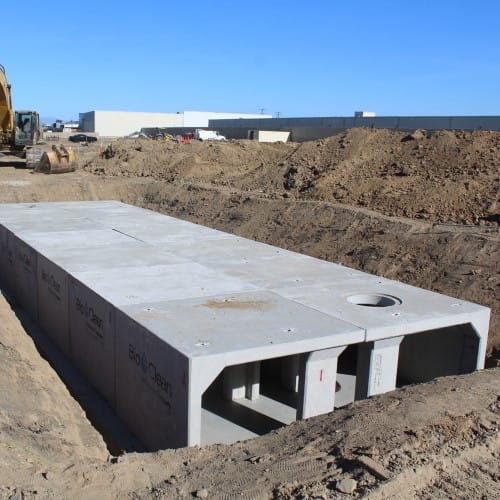

UrbanPond is a modular precast concrete underground storage system that mimics the function of ponds and open detention basins. It has high void percentages to maximize stormwater volume, and its robust precast form allows systems to be buried deeper without the need for specialized backfill, increased wall thicknesses, or extra rebar reinforcement.
Modules are available in 8’ x 8’ feet square or 8’ x 16’ rectangular options, giving designers more versatility to accommodate dense development, urban infill or larger high-volume projects. The modular design can be placed under roadways, parking lots and landscape areas in various shapes, sizes, and depths. The system’s internal offset leg configuration provides channel-less water distribution for stormwater entering and exiting the system, and the robust precast form allows it to be buried.
1.
UrbanPond® Concrete Stormwater Detention
2.
UrbanPond® Interior 8x16
3.
UrbanPond® Interior 8x8
4.
UrbanPond® Interior with Manhole 8x16
5.
UrbanPond® Interior with Manhole 8x8
6.
UrbanPond® Mono with Infiltration Elevation
7.
UrbanPond® Mono with Liner Elevation Details
8.
UrbanPond® Perimeter 8x16
9.
UrbanPond® Perimeter 8x8
10.
UrbanPond® Perimeter Wall Panel 8x8-0 8X8-10
11.
UrbanPond® Perimeter Wall Panel 8x8-7
12.
UrbanPond® Perimeter with Manhole
13.
UrbanPond® Perimeter with Manhole 8x8
14.
UrbanPond® Stacked Interior 8x16
15.
UrbanPond® Staked Details
16.
UrbanPond® Staked with Infiltration Details
17.
UrbanPond® UrbanPond Mono Elevation
