Douglas® VCP (Vinyl Coated Polyester) Windscreen

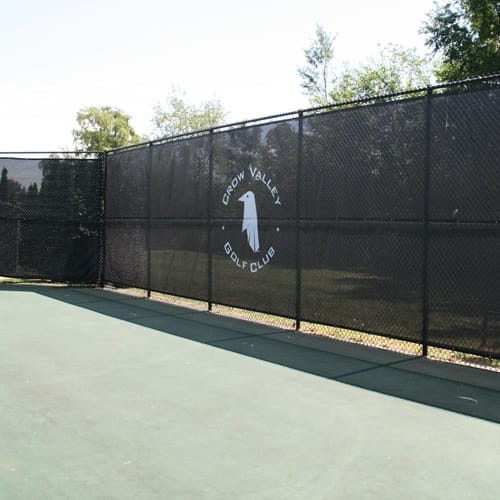

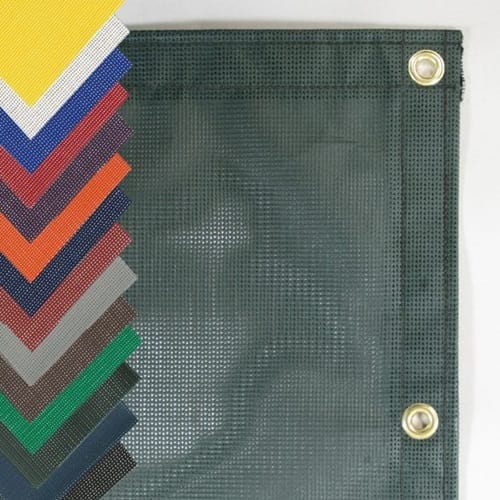

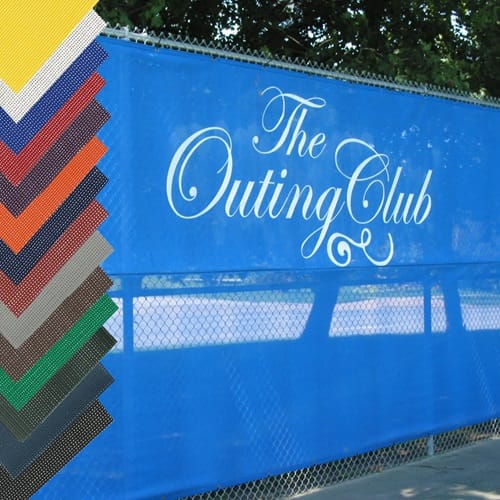

This versatile and attractive windscreen fabric is durable and boasts great weather resistance. Vinyl Coated Polyester (VCP) screens are available in a variety of colors and custom full color digital printing and logos can be printed directly on the material. Douglas’s superior fabrication and attention to detail is proven with their unique extra-strong reinforced hems –the strongest in the industry.
Windscreens are available in standard 6 ft and 9 ft heights and in custom heights by request. Screen length is completely custom and made to order to the nearest inch; 60 ft is the maximum recommended length per panel.
Vinyl Coated Polyester Material Specifications:
Fabric: 50% vinyl, 50% polyester – 9 x 12 weave
Windbreak: 80%
Weight per sq yard: 8 oz.
Tensile Strength: 230 x 200

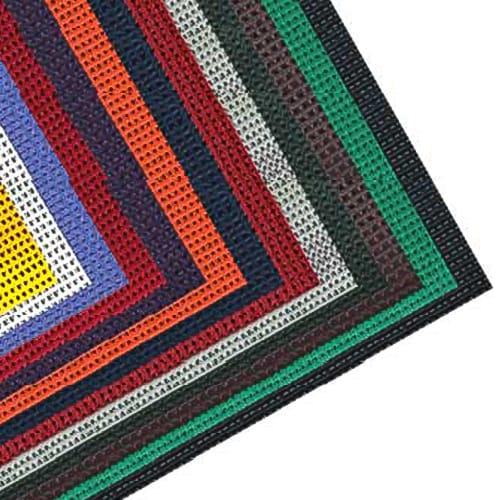

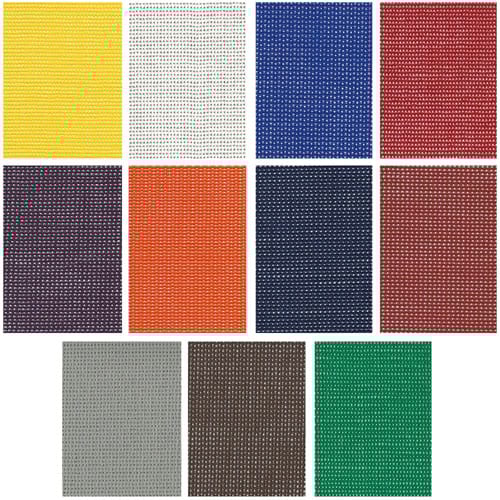

Standard Colors: Dark Green, Black, Open Tournament Blue, Royal Blue, Navy Blue or Red
Other Colors (By Special Request): Yellow, White, Purple, Orange, Burgundy, Gray, Brown or Bright Green
Warranty: 3-Year limited
