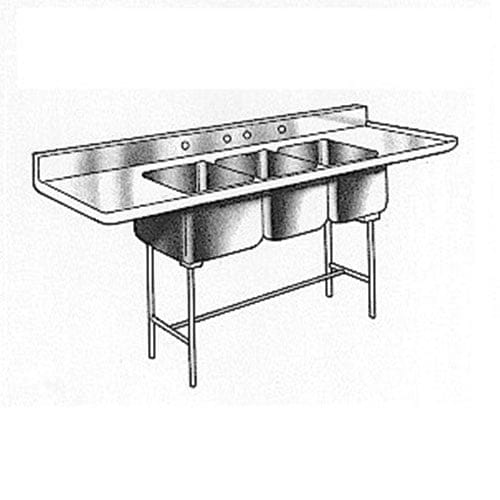

Institutional Sink
General Specifications:
Standard-duty dishtabling shall be manufactured from 1.6 mm (16 ga.) type 304 stainless steel.
All sink units have fully-radiused joints and cove-cornered bowls, integral with top
Stainless steel tubular support legs and cross-bracing members are 41 mm (1 5/8 in.) diameter. Legs are equipped with adjustable, self leveling feet.
Standard 200 mm (8 in.) high, splayed backsplash is provided with faucet mounting holes on 200 mm (8 in.) centers.
Individual or double drainboards are available as indicated. Standard sink basin depths is 350 mm (14 in).
