ChamClad

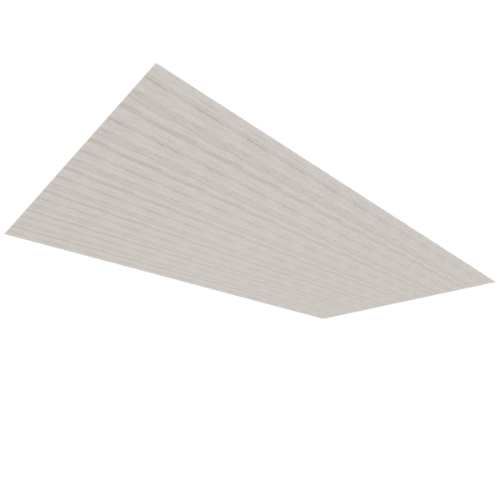

4" and 6" Ceiling, Soffit & Interior Wall Panel


Material: Recycled Rigid PVC


4'' Available Lengths: 12' & 20'


6'' Available Lengths: 9', 12', 14', 16', 20', & 30'


Exterior Products Applications


ChamClad® dual-profile is a versatile and simple architectural PVC panel. The installation is based on a tongue-and-groove with the product stacking from the bottom up known as a “stacker system”.


If you desire the U-Channel look, simply stack it one on top of the other by the row and insert it to the first stop.


If the desired profile is the V-Groove, simply take a non-marking rubber mallet and tap the top course further onto the board below to achieve the V-Groove.

CAD Drawings BIM Models ChamClad 4" and 6" Ceiling, Soffit & Interior Wall Panel
CAD Drawings BIM Models ChamClad 4" and 6" Ceiling, Soffit & Interior Wall Panel CAD Drawings BIM Models ChamClad 4" and 6" Ceiling, Soffit & Interior Wall Panel

Listing Back To Top

Design Visualizer

Design Visualizer

4" And 6" Solid Soffit 3/8" V-Groove & U-Channel - Exterior Soffit, Interior Wall and Ceiling, Column and Beams
4" And 6" Solid Soffit 3/8" V-Groove & U-Channel - Exterior Soffit, Interior Wall and Ceiling, Column and Beams
