Free Standing Clearance Bars

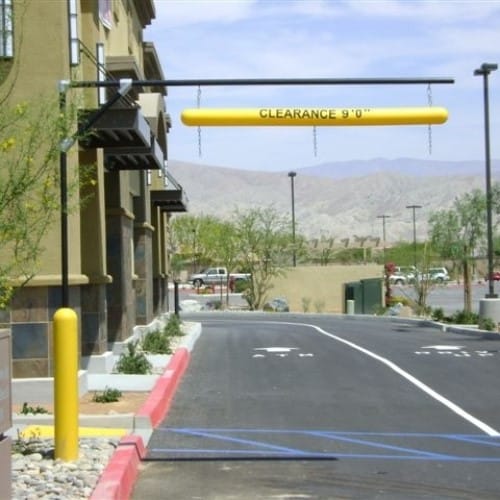

The Free Standing Clearance Bar System is a self-supporting clearance bar.
- The Free Standing Clearance Bar System is 10' wide or can be made with a shorter width for skinnier areas
- Available in 4 overall heights, 10', 11', 12' and 13' to the top of the horizontal support bar
- The base bollard (buried or surface mount) is 6" diameter pipe
- The vertical and horizontal support bars are 1.25" in diameter
- The actual clearance bar is 5.25" diameter
1.
Free Standing Clearance Bar: 10' x 10' (MAX 8' 6" to bottom of clearance bar)
2.
Free Standing Clearance Bar: 10' x 11' (MAX 9' 6" to bottom of clearance bar)
3.
Free Standing Clearance Bar: 10' x 12' (MAX 10' 6" to bottom of clearance bar)
4.
Free Standing Clearance Bar: 10' x 13' (MAX 11' 6" to bottom of clearance bar)
