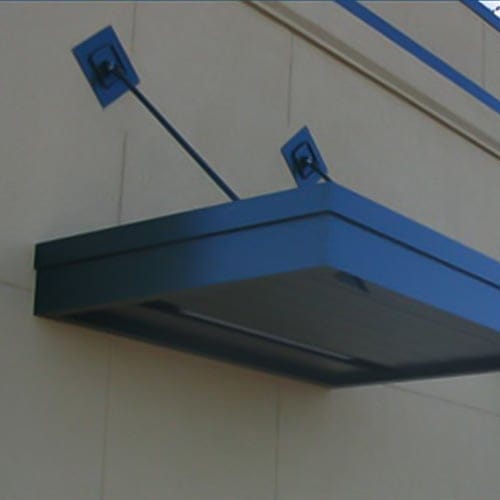

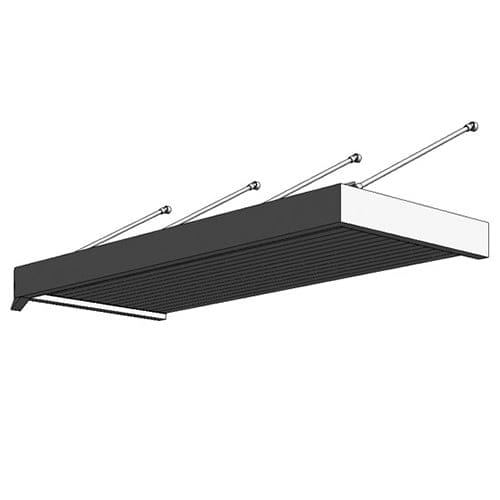

Super Lumideck Canopies (Flat Soffit)
The Super Lumideck Flat Soffit hanger rod canopy is an all extruded pre-engineered canopy designed for high load architectural applications. The Flat Soffit deck style provides an aesthetic ceiling look and achieves a clean and minimalistic design for any canopy application. Deck profiles can be combined with differing fascias to complement any design emphasis or building requirement. Mapes aluminum non-rusting finish will have a much longer life span as compared to the typical field painted finishes used on common structural steel canopies. The all extruded design provides a solution for both high snow drift loads and hurricane force winds.



1.
Super Lumideck Flat Soffit Canopy: End Section Detail
2.
Super Lumideck Flat Soffit Canopy: Plan
3.
Super Lumideck Flat Soffit Canopy: Section Detail of Hanger Rod Assembly
4.
Super Lumideck Flat Soffit Canopy: Transverse Section
