Greenscreen Trellis Systems

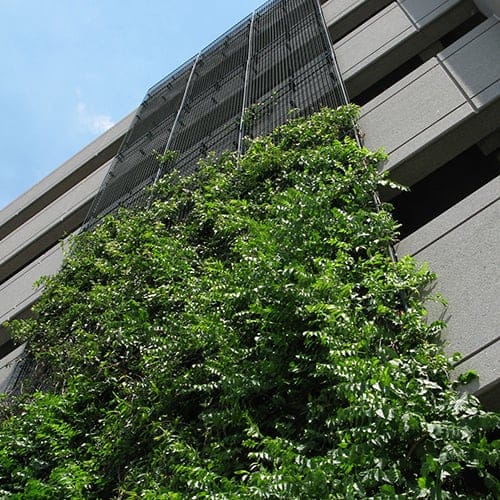

The greenscreen® trellis system can transform walls into soft textured, vine covered, seasonally changing surfaces commonly referred to as green “facades.” Our system of engineered mounting accessories is designed to hold greenscreen® trellis panels off the building surface, protecting the building’s waterproof membrane from direct plant attachment and transferring the weight of the plants to the screen structure and the wall. Panels can be stacked side to side or top to bottom to cover larger areas.
