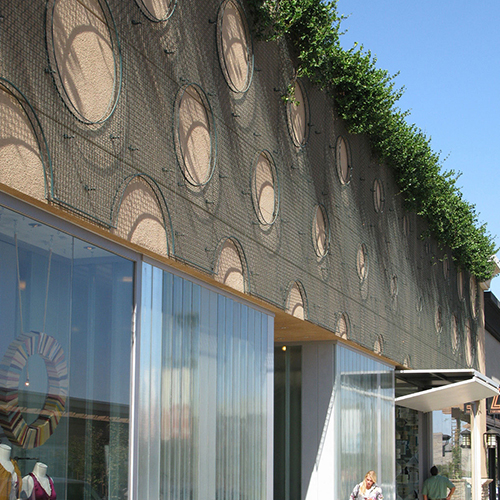

Custom Shaped Green Facade Wall/Trellis
The greenscreen® trellis system can transform walls into soft textured, vine covered, seasonally changing surfaces commonly referred to as green “facades.” Our system of engineered mounting accessories is designed to hold greenscreen® trellis panels off the building surface, protecting the building’s waterproof membrane from direct plant attachment and transferring the weight of the plants to the screen structure and the wall. Panels can be stacked side to side or top to bottom to cover larger areas.
1.
Gussetted Attachment (5132G): Steel Mounted Application, Plan View
2.
Gussetted Attachment (5132G): Steel Mounted Application, Section View
3.
Adjustable Mounting Attachment (5132R): Wall Mounted Application, Plan View
4.
Adjustable Mounting Attachment (5132R): Wall Mounted Application, Section View
5.
Snap Clip Attachment (5133X): Post Mounted Application
6.
C Clip Attachment (5141): Post Mounted Application, requires 5105 Steel Edge Trim
7.
Standoff Attachment (5159): Wall Mounted Application, Plan View
8.
Standoff Attachment (5159): Wall Mounted Application, Section View
9.
Trellis Trim Connection (5104): Post Mounted Application, Plan View
10.
Trellis Trim Connection (5104): Wall Mounted Application, Plan View
