Super Lumideck Post Support Canopies
Post supported aluminum walkway covers by Mapes Architectural Canopies provide a pre-engineered economical alternative for both free standing and wall mounted applications. The all extruded Super Lumideck is designed to meet local building codes for snow and wind load. Free spans up to 20' can provide a high strength protective cover with a minimum of support structure.
1.
Super Lumideck (Post Supported): Plan and Elevations
2.

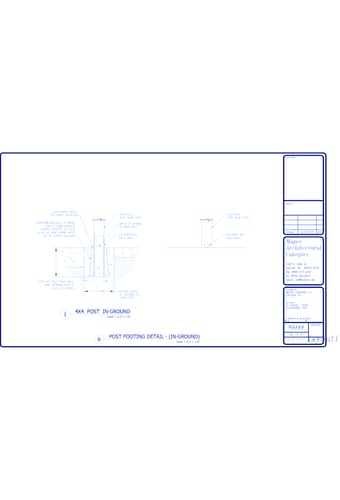

Super Lumideck (Post Supported): Post Footing Detail (In-Ground)
3.

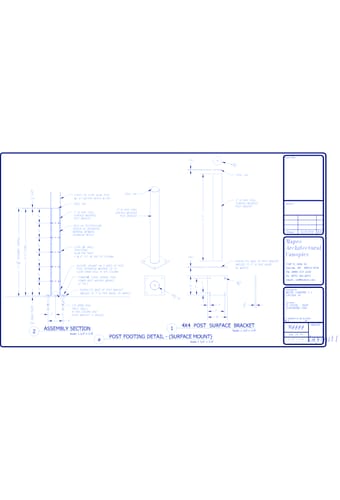

Super Lumideck (Post Supported): Post Footing Detail (Surface Mount)
4.

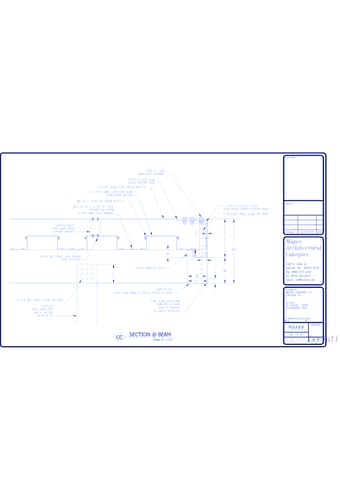

Super Lumideck (Post Supported): Section Detail at Beam
5.

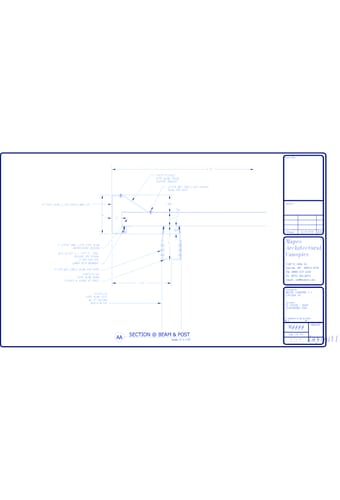

Super Lumideck (Post Supported): Section Detail at Beam and Post
6.

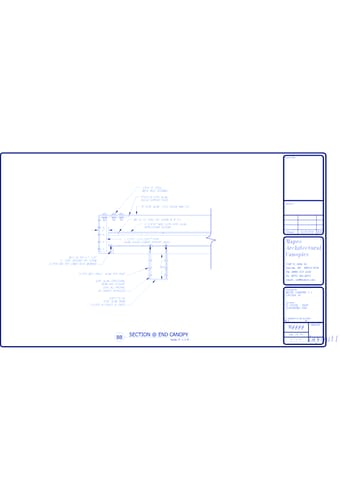

Super Lumideck (Post Supported): Section Detail at End Canopy
