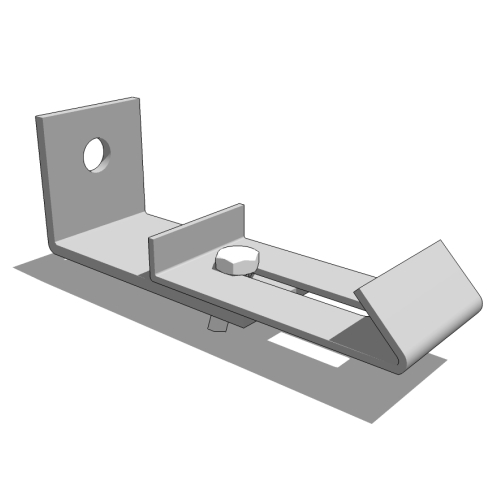

5132R Adjustable Mounting Clip
Used as a flush mounting clip for wall mounted or steel mounted greenscreen® panels. Clip provides full depth panel support for uplift and downloading.
Materials: 10 and 14 gauge galvanized steel
Size: 1 1/2" wide x 1 1/2" tall x 3" length with hole for up to 3/8" diameter fastener. Two pieces.
Finish: powder coated to match panel color
1.
Greenscreen: 5132R Mounting Clip
2.

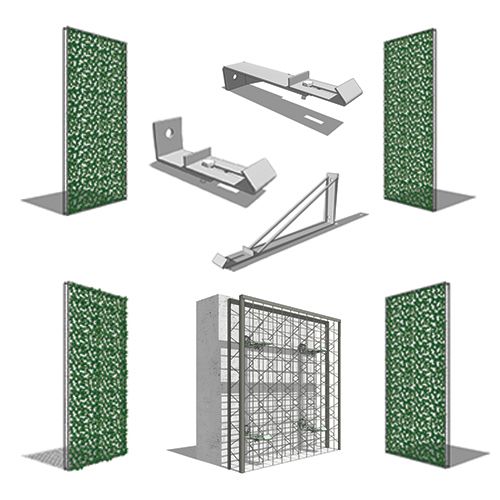

Trellis: Vine Planting Detail - Wall Mounted Application
3.
Trellis Trim Connection (5104): Post Mounted Application, Plan View
4.
Trellis Trim Connection (5104): Wall Mounted Application, Plan View
5.
Adjustable Mounting Attachment (5132R): Wall Mounted Application, Plan View
6.
Adjustable Mounting Attachment (5132R): Wall Mounted Application, Section View
7.
Adjustable Mounting Attachment (5132R): Wall Mounted Application, Corner Detail, Plan View
8.
Adjustable Mounting Attachment (5132R): Steel Mounted Application, Plan View
9.
Adjustable Mounting Attachment (5132R): Steel Mounted Application, Section View
