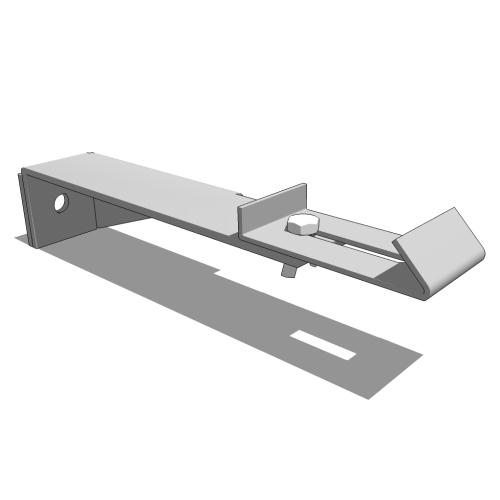

5132G Gusset Adujustable Mounting Clip


CAD Drawings BIM Models Greenscreen 5132G Gusset Adujustable Mounting Clip
Used for wall mounted or steel mounted greenscreen® panels, mounted off the surface from 4 1/2" to 6". Clip provides full depth panel support for uplift and downloading. Materials: 10 and 14 gauge galvanized steel Size: 1 1/2" wide x 1 1/2" tall x 7 1/2" length with hole for up to 3/8" diameter fastener. Adjustable to hold screen from 4 1/2" to 6" from structure. Two pieces. Finish: powder coated to match panel color
