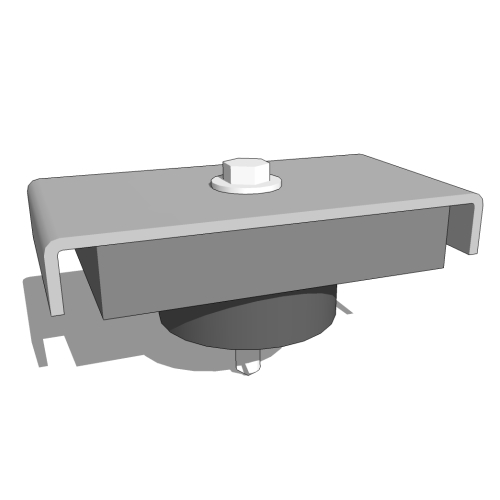

5141 C-Clip
Used on panels with Channel or Edge Trim to hold screen edge to a vertical wall, column or post, or to attach screen bottom edge to a horizontal slab or beam, or used as a pair to join flat or curved screens at a horizontal joint.
Materials: 14 gauge galvanized steel
Size: 1/2" leg x 3 1/4" x 1/2" leg x 1 3/4" wide
Finish: powder coated to match panel color
1.
Greenscreen: 5141 Mounting C-Clip
2.
Trellis: Vine Planting Detail - Wall Mounted Application
3.
Trellis Trim Connection (5104): Post Mounted Application, Plan View
4.
Trellis Trim Connection (5104): Wall Mounted Application, Plan View
5.
C Clip Attachment (5141): Post/Slab Application
6.
C Clip Attachment (5141): Post Mounted Application, requires 5105 Steel Edge Trim
7.
C Clip Attachment (5141): Panel to Slab Application, requires 5105 Steel Edge Trim
