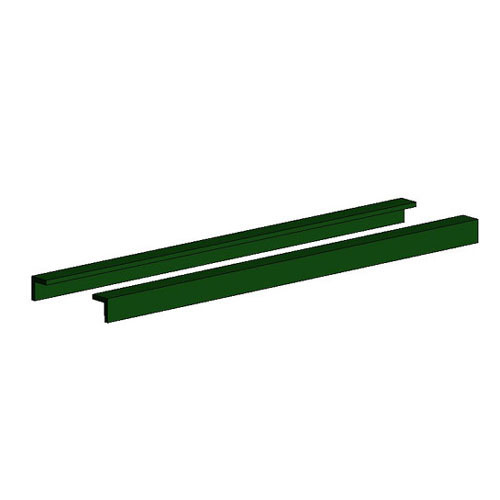

5104 Steel Channel Trim


CAD Drawings BIM Models Greenscreen 5104 Steel Channel Trim
Recommended adjacent to pedestrian traffic or where edge reinforcement is required for special mounting conditions or long term maintenance. #5104 Steel Channel Trim or #5105 Steel Edge Trim can be added to panels in multiple configurations, but is not necessary to maintain panel rigidity. Specifications: 5104: 1/2" leg x 3 1/8" wide x 1/2" leg: 20" gauge galvanized steel 5105: 1/2" leg x 1/2" leg: 20" gauge galvanized steel Specifications: 5104: 1/2" leg x 3 1/8" wide x 1/2" leg: 20" gauge galvanized steel 5105: 1/2" leg x 1/2" leg: 20" gauge galvanized steel
