5105 Steel Edge Trim
Recommended adjacent to pedestrian traffic or where edge reinforcement is required for special mounting conditions or long term maintenance. #5104 Steel Channel Trim or #5105 Steel Edge Trim can be added to panels in multiple configurations, but is not necessary to maintain panel rigidity.
Specifications:

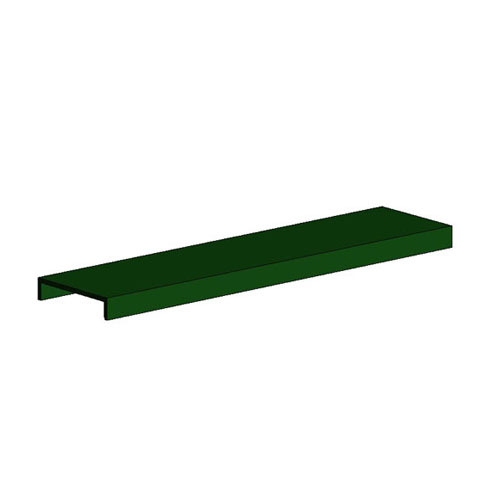

5104: 1/2" leg x 3 1/8" wide x 1/2" leg: 20" gauge galvanized steel
5105: 1/2" leg x 1/2" leg: 20" gauge galvanized steel
1.

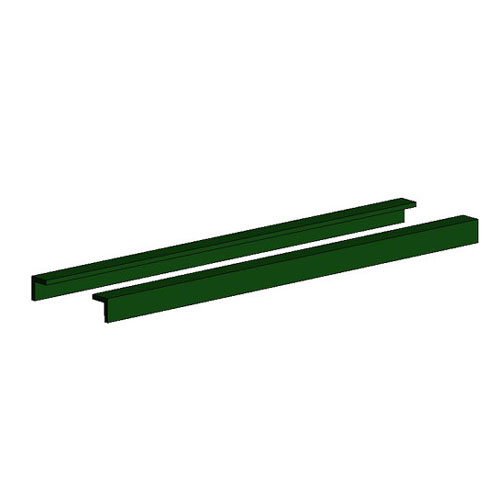

Steel Edge Trim (5105): Trellis Accessories
2.
Trellis Trim Connection (5104): Post Mounted Application, Plan View
3.
Trellis Trim Connection (5104): Wall Mounted Application, Plan View
4.
C Clip Attachment (5141): Post Mounted Application, requires 5105 Steel Edge Trim
5.
C Clip Attachment (5141): Panel to Slab Application, requires 5105 Steel Edge Trim
