Filtrine Manufacturing Company

Electric Water Coolers: FCC-107-16

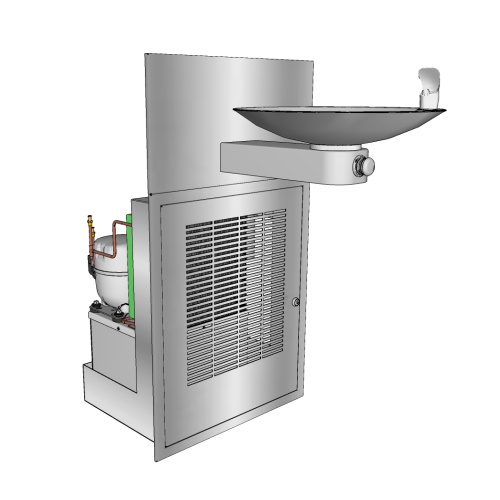

The Model FCC-107-16 is a wall-mounted drinking water fountain. The 16” diameter 16 ga. round bowl has an integral drain. Overall fountain height is 3-1/4”. The hand-polished bronze finish comes in either #4 Satin (standard), or in #8 Mirror or Oil-Rubbed or Statuary Bronze. The hand-polished stainless steel drinking fountain and cover plate can be finished in your choice of either #4 Satin (standard), or #8 Mirror. The copper/brass waterways are 100% lead-free—NO PLASTIC TUBING/CONNECTORS ARE USED. The  Filtrine Taste Master® water purifier and chiller are located behind access panel directly below fountain.

Filtrine’s FCC-107-16 fountain  meets or exceeds ADA requirements for spout height, spout location, controls and clearances as specified in the Federal Register.

Receptor

16 ga, 16” diameter seamless bowl design with welded rim, ground and polished to a finely tapered edge with 1/32” radius
Underbowl

Raised from support arm by 1/2” collar to provide an aesthetically pleasing profile
Support Arm

4-3/8” wide by 2-5/8” high — in 14 gauge
Mounting Plate

1/4” steel plate 10-1/2"H [19-1/2”H with bottle filler option] for vertical strength, 19-1/2” wide with 3/8”steel tongue projecting into support arm for maximum horizontal stability
Cover Plate

16 ga stainless steel or bronze, 20"W x 3/8"D x 11"H [20"H with bottle filler option], and fits over mounting plate, secured by fountain arm
Purifier

Taste Master Purifier
CHILLER

Wall-insert Model 67A chiller with 1 gallon storage, charged with HFO R513A "Ozone Safe - Low GWP" refrigerant

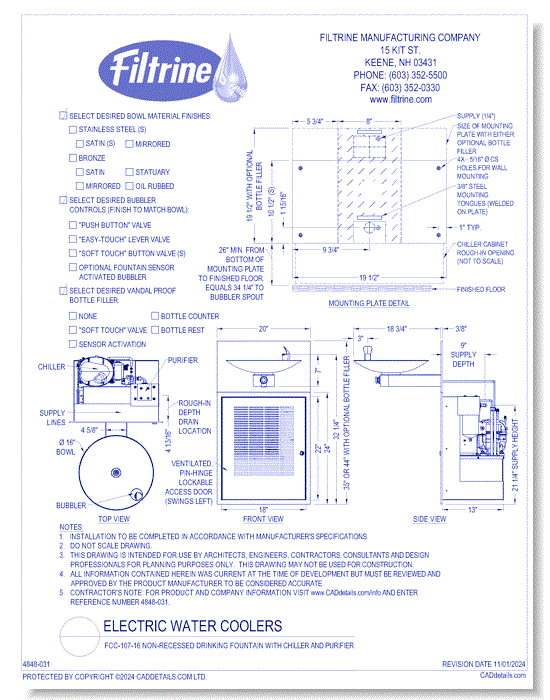

CAD Drawings BIM Models Filtrine Manufacturing Company Electric Water Coolers: FCC-107-16
