Filtrine Manufacturing Company

Drinking Fountains: 130-CP-14


Filtrine’s Model 130-CP-14 is a very understated and elegant pedestal drinking water fountain in stark contrast to the Filtrine Model 125-CP. Consider specifying it in your current building or architectural design plans when you are looking for a fountain that complements its surroundings in your office building, hotel or museum. The 14” diameter bowl is designed for tighter spaces. For a more dramatic look, consider the 130-CP-16 model which offers a 16” diameter bowl.

Receptor

14” diameter with 10"bowl, seamless edges, and rectangular design — in 16 gauge.
Support Arm

Mounted on a 4” diameter column with concealed plumbing and access panel, overall fountain height (excluding pedestal) not to exceed 3 1/4”.
Mounting Plate

1/4” steel factory mounting plate connects to floor substrate with 3/8” lag bolts
Cover Plate

Included is a matching 16 ga. floor cover plate to conceal mounting bracket

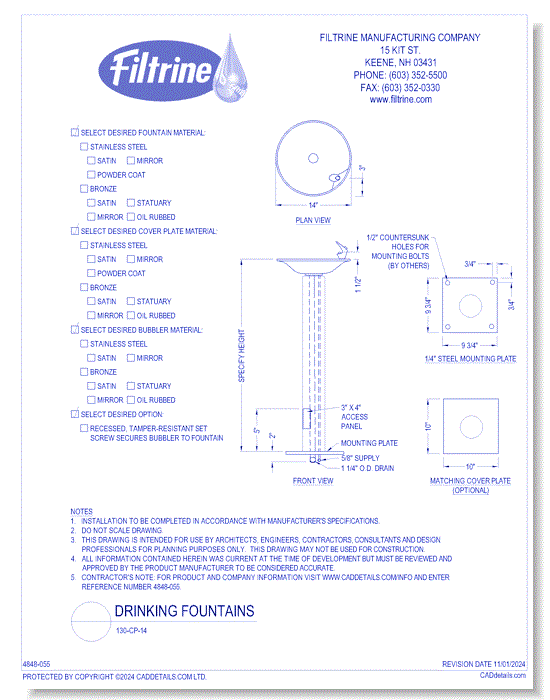

CAD Drawings BIM Models Filtrine Manufacturing Company Drinking Fountains: 130-CP-14

Listing Back To Top

Design Visualizer

Design Visualizer

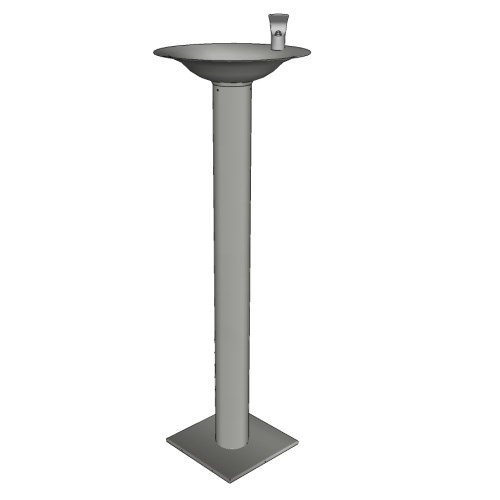

Drinking Fountains: 130-CP-14 Pedestal Drinking Fountain
Drinking Fountains: 130-CP-14 Pedestal Drinking Fountain
