Spectis Moulders

TR1212A


Spectis’ trellis design incorporates the latest maintenance free technology with the traditional look of early 20th century architecture.


Spectis' trellis features a 100% maintenance free polyurethane exterior shell wrapping an internal aluminum structural truss, providing a 5-lb./ft2 safe loading.

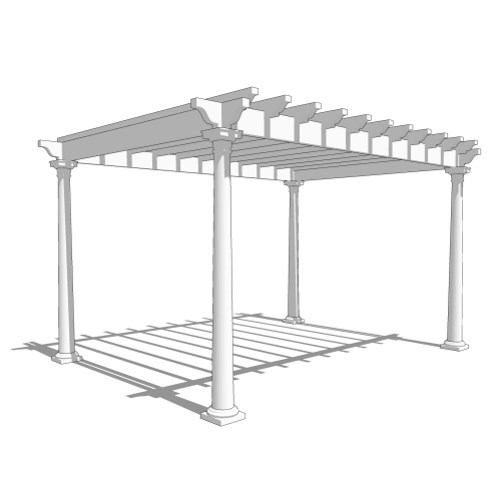

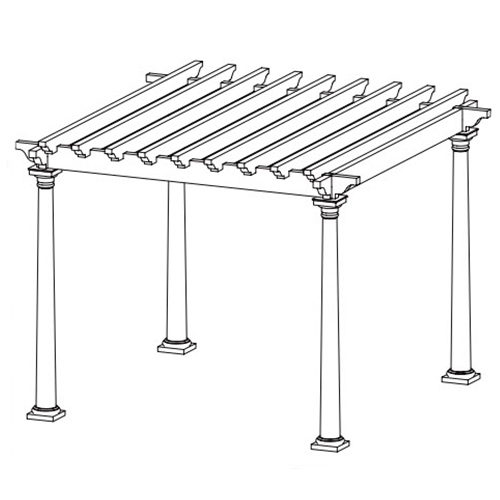

Spectis' trellis is modular in design, Such as the 12' x 12' kit (TR 1212A). Each trellis comes with pre-notched beams and crosses for easy assembly


TR1212A – Complete Trellis Kit contains:

  • 9 – TRB101 3” x 6” Beams

  • 4 – TRB100 3” x 9” Beams

  • 4 – CLM100-106 with mounting flanges

  • 4 – CB100-144 Tuscan Cap

  • 4 – CB100-145 Tuscan Base

  • 4 – KIT101 Hardware to fasten Columns to both Trellis and Concrete Deck and flashing for Column Caps

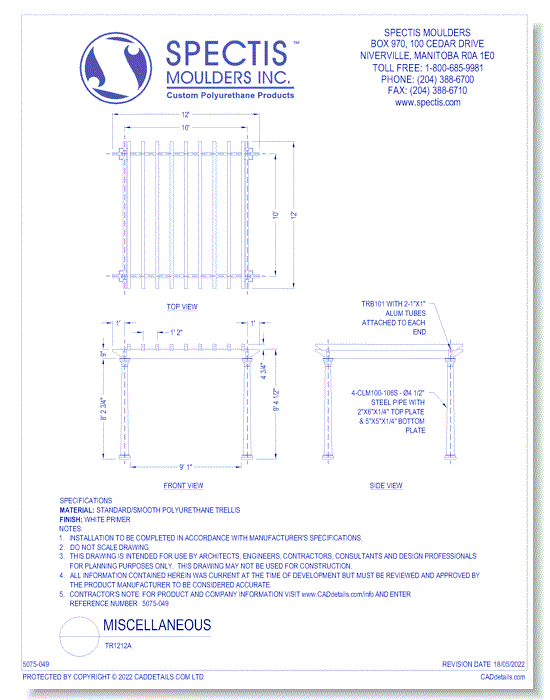

CAD Drawings BIM Models Spectis Moulders TR1212A
