NanaWall Systems Inc.

NanaWall® SL60


The NanaWall SL60 maintains the European styling of narrow and equal sightlines around each door panel creating an attractive display of glass and light


The NanaWall SL60 delivers superior weather performance, beautiful aesthetic design, and offers an optional floor supported movement when installation conditions require it


The NanaWall SL60 features an all aluminum design that incorporates an insulation barrier built-in. With an overall depth of 60mm, this provides exceptional protection from exterior elements and delivers a comfortable indoor experience when closed


The NanaWall SL60 can accommodate triple-paned glass for additional thermal performance in more extreme conditions

The NanaWall SL60 has a removable hinge pin option that makes for safe and easy access to clean the outside when needed.


The NanaWall SL60 meets the German “DIN EN 1191/12400 Classification” where a unit is tested after 20,000 opening and closing cycles and is still functional.


The NanaWall SL60 features a concealed locking rod and locks into both the head track and sill. The locking hardware has passed forced entry testing.


The NanaWall SL60 has been tested for sound control and has a remarkable resistance to wind driven rain.


CAD Drawings BIM Models NanaWall Systems Inc. NanaWall® SL60
CAD Drawings BIM Models NanaWall Systems Inc. NanaWall® SL60
CAD Drawings BIM Models NanaWall Systems Inc. NanaWall® SL60
CAD Drawings BIM Models NanaWall Systems Inc. NanaWall® SL60

Listing Back To Top

Design Visualizer

NanaWall® SL60: Thermally Broken Aluminum Framed Folding System

You need to be logged in to view & download files.


New to CADdetails?

Register to enjoy full access to unlimited 3D models, CAD drawings and specifications. It's free!

Downloads

Architectural Product Information

About Education Specs Media

CAD Toolbar

CADdetails™
2D CAD Page

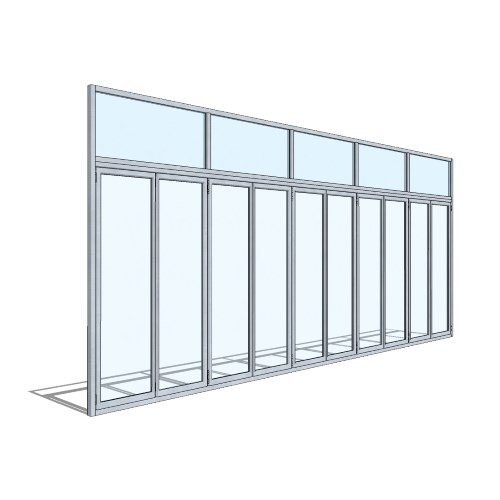

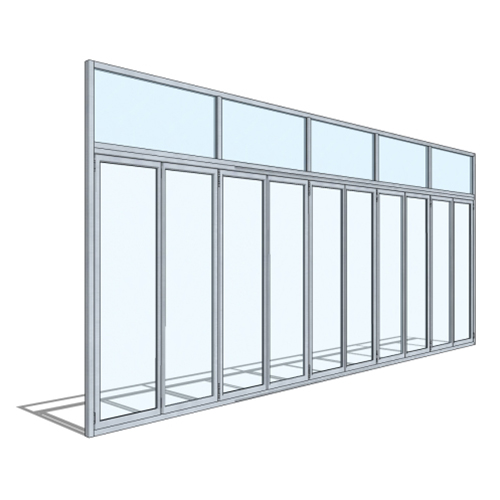

BIM & 3D Toolbar

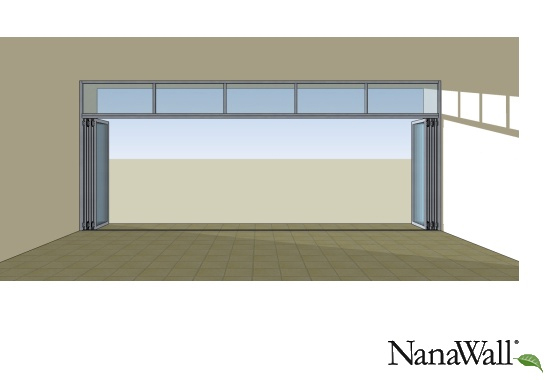

Revit & SketchUp
