Wedgewire


CAD Drawings LUXE Linear Drains Wedgewire

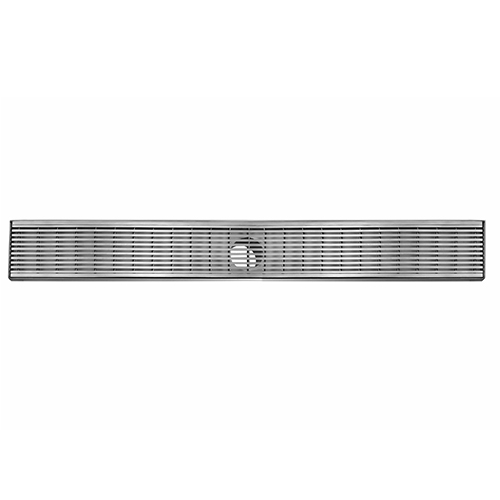

LUXE Wedgewire is an architectural grade welded triangular cross section, framed, longitudinal grate, unmatched in design, hydraulic function, strength, and aesthetic appeal. Minimal to zero spillover when installed at threshold, maximizing safety considerations. LUXE Wedgewire gratings have limitless custom applications. Grate is easily removed for maintenance access and cleaning. Standard Lengths are 26", 30", 36", 40", 48", and 60". Custom lengths are available.


LUXE Wedgewire grates are ADA compliant and recommended for use in any universal design bathroom. Standard finish is satin stainless. Custom finishes and lengths available.

All Available 2D CAD Files

All Available Specifications
