Tubelite Inc.

200 Series Curtainwall Windows

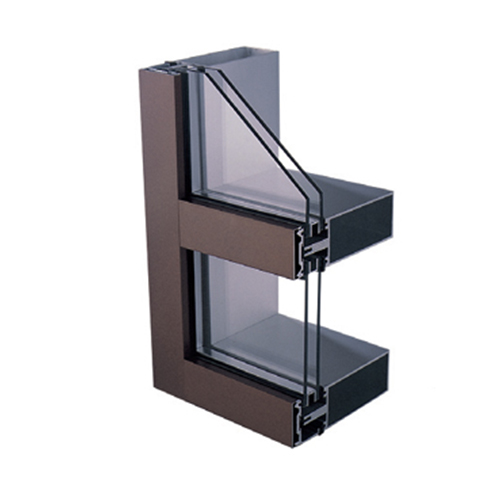

The 200 Series Curtainwall is an economical system with a wide range of low- to mid-rise applications including atriums and clerestory. This exterior-glazed pressure bar system with 2” face dimension is ideal for curving and compatible with all Tubelite entrances.

Snap-on cover finishes, available in a variety of colors, allow for contrasting interior and exterior finishes on exposed framing. Silicone-glazed verticals can be selected to provide a sleek uninterrupted surface.

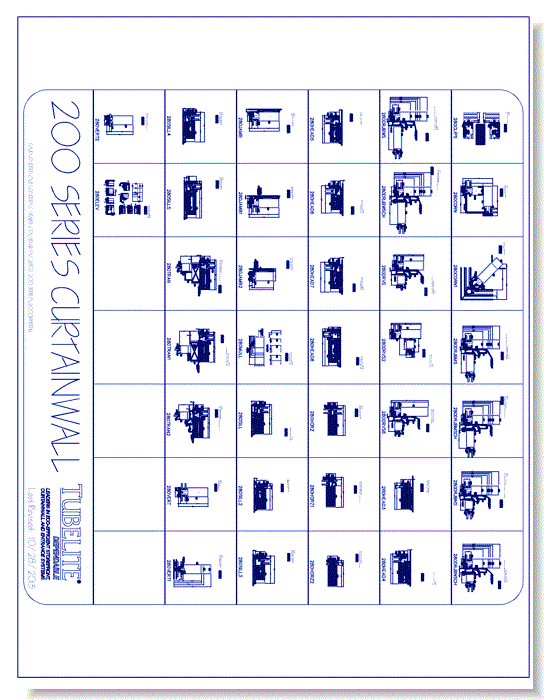

CAD Drawings BIM Models Tubelite Inc. 200 Series Curtainwall Windows
CAD Drawings BIM Models Tubelite Inc. 200 Series Curtainwall Windows

Listing Back To Top

Design Visualizer

Design Visualizer

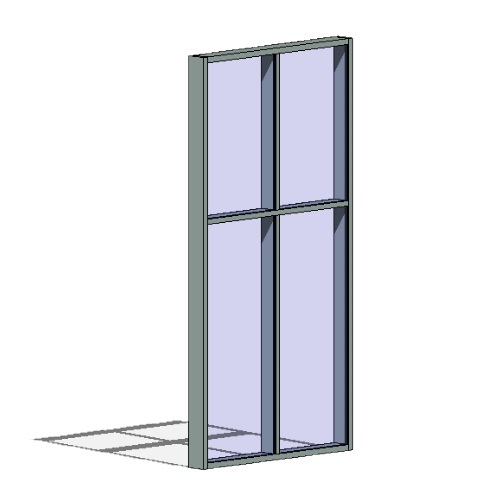

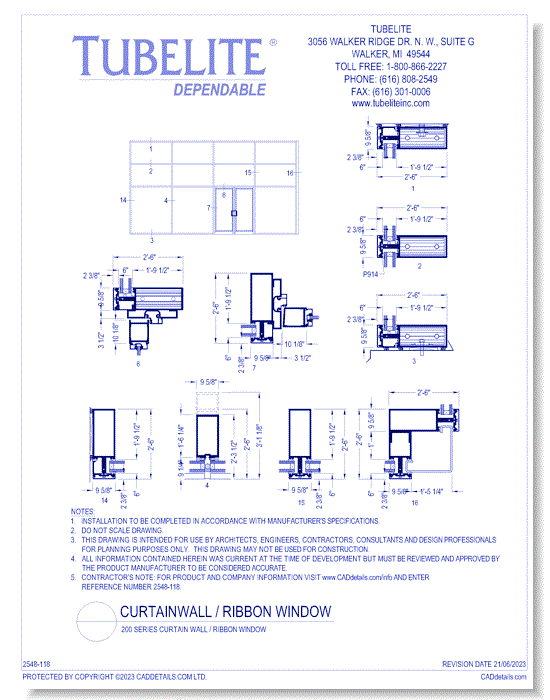

200 Series   Curtainwall/Ribbon Window
200 Series   Curtainwall/Ribbon Window
200 Series   Curtainwall/Ribbon Window
