Tubelite Inc.

4500 Series Storefront Framing

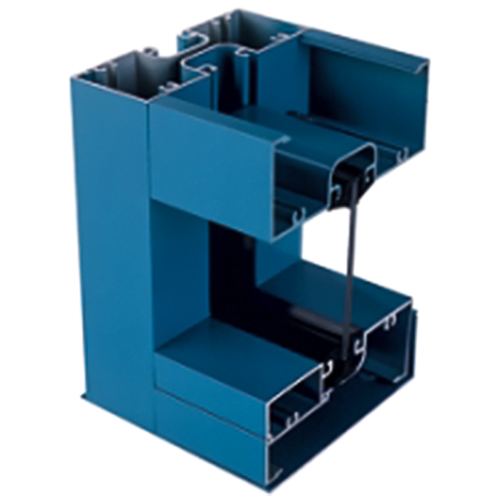

Our 4500 Series Storefront framing is ideal for a wide variety of interior or low-rise exterior applications. Profiles of 1-3/4" x 4-1/2" are designed for 1/4" to 3/8" exterior glazing, and can be assembled by screw spline or clip joinery. The roll-in gasket is easy to install at the interior and exterior of the glass. The 1-3/4" framing is compatible with Tubelite Narrow, Medium and Wide Stile Doors.

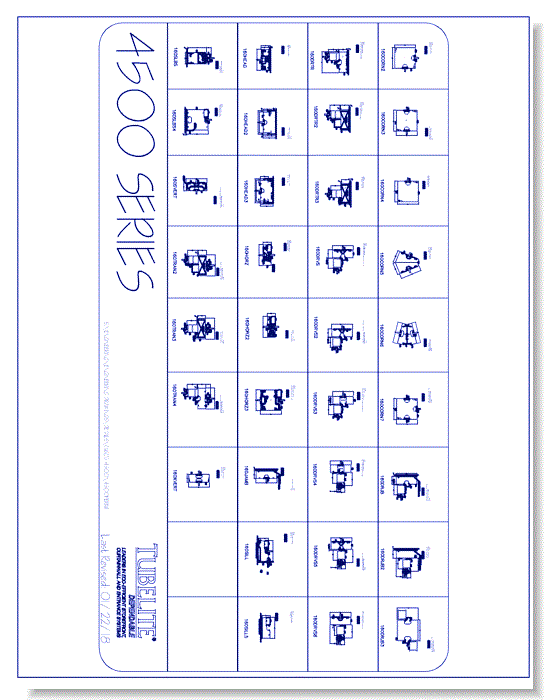

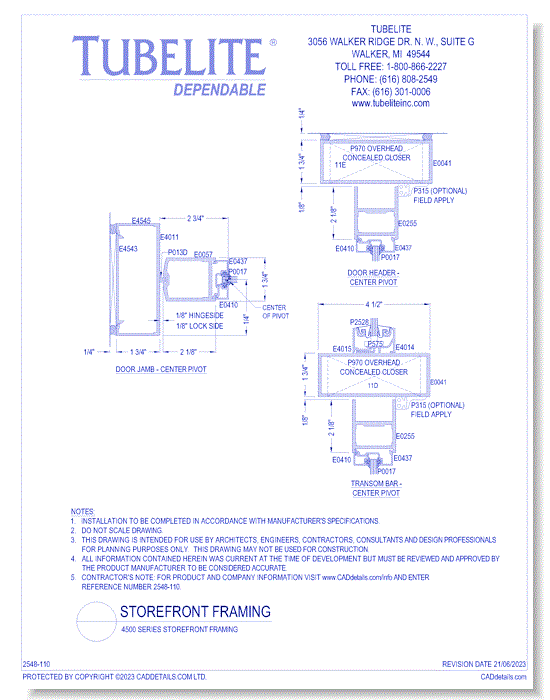

CAD Drawings BIM Models Tubelite Inc. 4500 Series Storefront Framing

Listing Back To Top

Design Visualizer

Design Visualizer

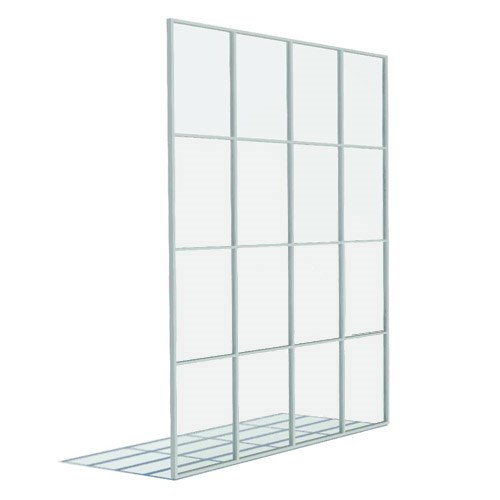

4500 Series Storefront Framing
4500 Series Storefront Framing
4500 Series Storefront Framing
