Fox Blocks

Fox Buck

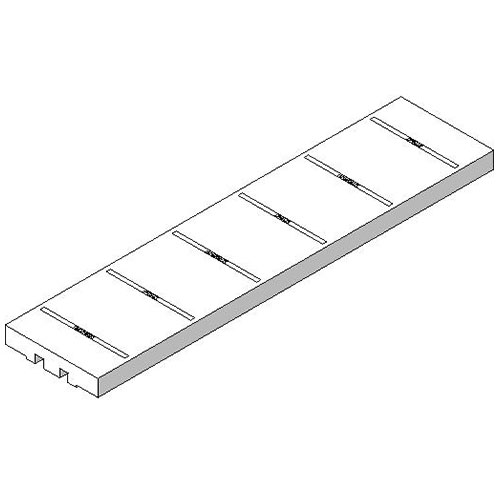

Fox Buck is a fully integrated, continuous insulation window and door buck for residential and commercial applications. The 1? x 1? notches create a dual barrier against drafts or moisture penetration. When installed properly, the concrete barrier protection is continuous around the entire opening. These barriers also anchor the Fox Buck to the wall with enough strength for weather events. The buck is exactly 2? thick for easy measurements, and measures 48? long to match the length of the three blocks. The buck features a 1- 1/2? wide “fastening zone” for door and window attachments that runs the full height of the buck every 8? on center. Notches ensure proper alignment between the buck and the wall form. On the inside, dual full-length 1? x 1? grooves create a solid concrete barrier against drafts and moisture. Circles are marked at 16? centers for sill cutouts and vibrator access. The expanded 2015 Fox Buck product line now includes the 4?, 6?, 8?, 10?, and 12? sizes.
CAD Drawings BIM Models Fox Blocks Fox Buck

All Available 2D CAD Files

All Available BIM and 3D Files

All Available Specifications
