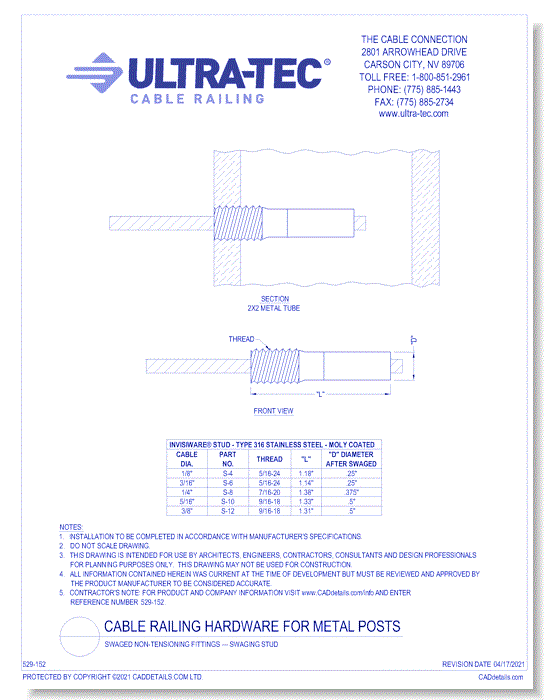

Cable Railing Hardware for Metal Posts — Swaging Stud

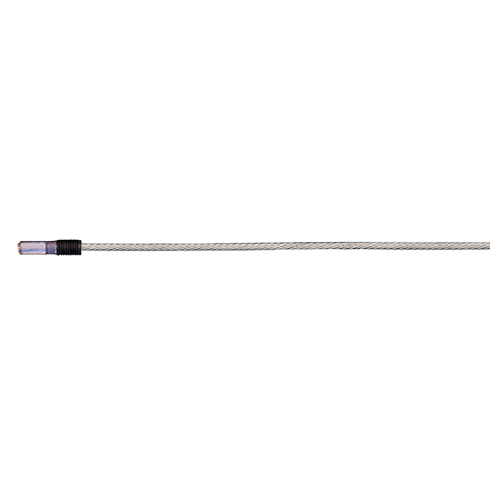

The Invisiware® Stud is a concealed, swaged, non-tensioning, inside-the-post-mounting fitting that is suitable for use on level or pitched runs and is available for 1/8”, 3/16”, 1/4”, 5/16”, and 3/8” diameter 1x19 stainless steel cable.
The Invisiware® Stud can be used as a non-tensioning end in level or pitched applications. It is swaged onto one end of the cable and threaded into a drilled and tapped hole in the face of the post (1/4” wall thickness minimum). This fitting would typically be paired with an Invisiware® Receiver and Stud tensioning fitting on the opposite end. This method of using an Invisiware® Stud as a non-tensioning end is restricted to interior applications.
