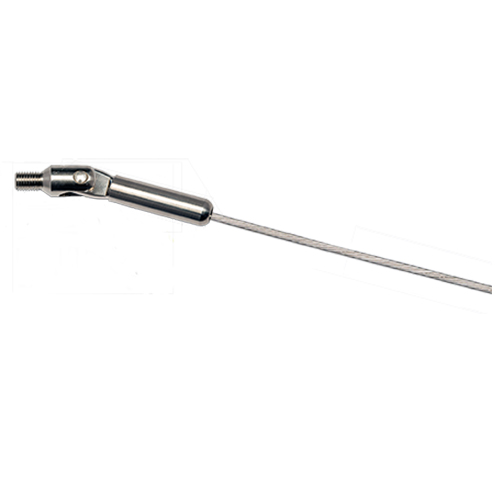

Cable Railing Hardware for Metal Posts — Push-Lock® Threaded Clevis


New for 2016 – the Push-Lock® Threaded Clevis is an exposed, swageless, face-of-the-post-mounted fitting that is suitable for level or pitched runs, and is available for 1/8” and 3/16” diameter 1x19 stainless steel cable. It is a more compact design than our  Push-Lock® Threaded Eye.

The Push-Lock® Threaded Clevis can be used with any tensioning fitting on the opposite end of the run. This fitting is installed into a pre-drilled and tapped hole in the end post. The cable attaches to the body via our Push-Lock® locking wedge system which requires no special tools.

While this fitting can be used on pitched or level runs, it is most appropriate for pitched runs because the body of the fitting pivots at the clevis.

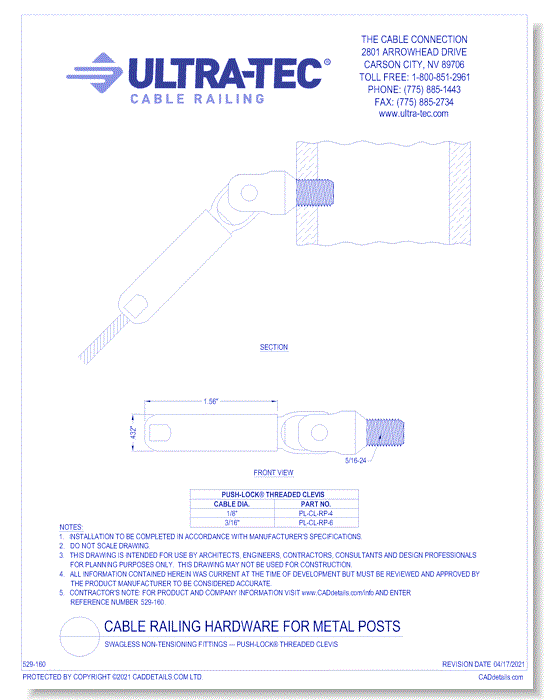

CAD Drawings Cable Connection, The (Ultra-tec Cable Railing) Cable Railing Hardware for Metal Posts — Push-Lock® Threaded Clevis

Listing Back To Top

Design Visualizer

Design Visualizer

Swagless Non-Tensioning Fittings — Push-Lock® Threaded Clevis
