Cable Railing Hardware for Metal Posts — Push-Lock® Threaded Eye

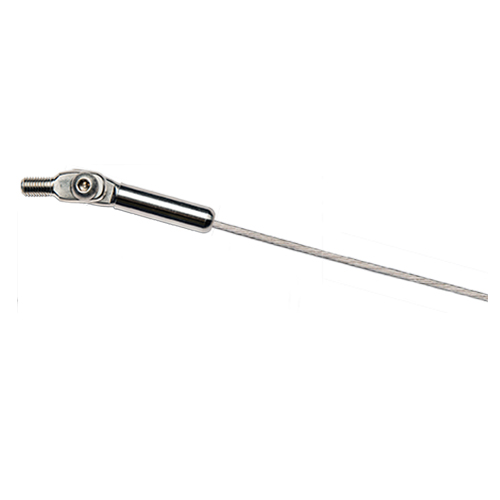

The Push-Lock® Threaded Eye is an exposed, swageless, non-tensioning, face-of-the-post-mounted fitting that is suitable for use on level or pitched runs and is available for 1/8” and 3/16” diameter 1x19 stainless steel cable.

The Push-Lock® Threaded Eye must be used with a tensioning fitting on the opposite end of the run. This fitting attaches to the end post by installing a Threaded Tab into a pre-drilled and tapped hole in the end post and attaching the Push-Lock® Threaded Eye to the threaded tab with a button head screw. The cable attaches to the fitting via our Push-Lock® locking wedge system which requires no special tools. Screw and threaded tab are sold separately.

While this fitting can be used on pitched or level runs, it is most appropriate for pitched runs because the threaded eye portion of the fitting pivots at the threaded tab.
CAD Drawings Cable Connection, The (Ultra-tec Cable Railing) Cable Railing Hardware for Metal Posts — Push-Lock® Threaded Eye
