Cable Railing Hardware for Concrete — Adjust-a-Body® with Concrete Anchor Bolt


The Adjust-A-Body® with Concrete Anchor Bolt is an exposed, swaged, tensioning, face-of-the-surface-mounted fitting that is recommended for level runs terminating at a concrete surface only. This fitting is available for 1/8”, 3/16”, and 1/4” diameter 1x19 stainless steel cable.

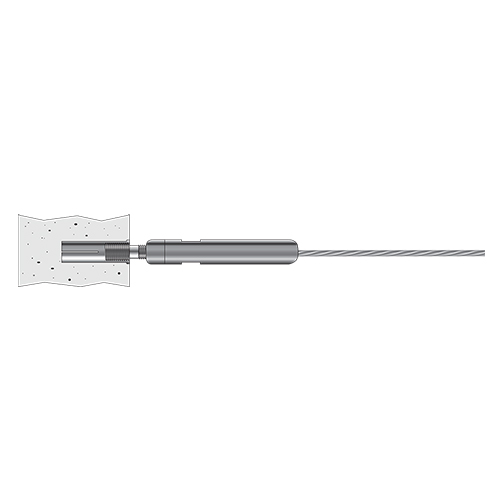

The Adjust-A-Body® with Concrete Anchor Bolt can be used with any fitting on the opposite end of the run. A concrete anchor is driven into a pre-drilled hole in the concrete surface. The short thread of the anchor bolt portion of the fitting is threaded into the concrete anchor. The cable is retained within the body portion of the fitting by a ferrule swaged onto the end of the cable. The lock nut is installed all the way onto the exposed machine thread of the anchor bolt, followed by the body, which is secured onto the anchor bolt until effectively creating tension on the cable. Once sufficient tension is achieved, the lock nut is secured against the end of the body to prevent the fitting from loosening.

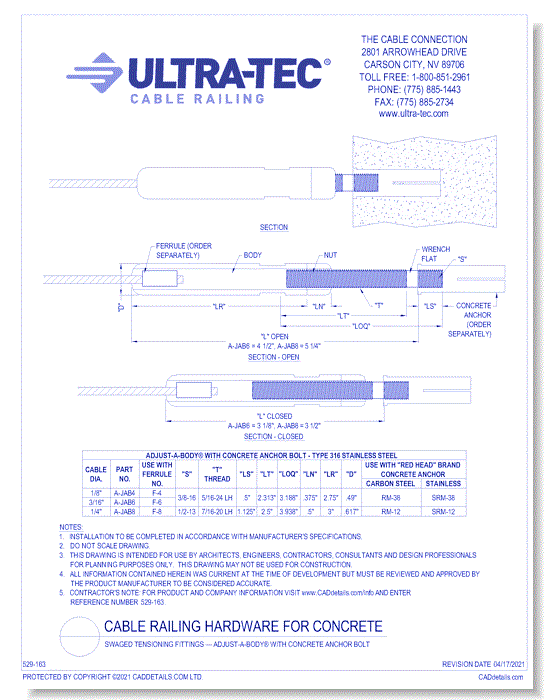

CAD Drawings Cable Connection, The (Ultra-tec Cable Railing) Cable Railing Hardware for Concrete — Adjust-a-Body® with Concrete Anchor Bolt
