Cable Connection, The (Ultra-tec Cable Railing)

Cable Railing Hardware for Sleeved Posts — Adjust-A-Jaw®

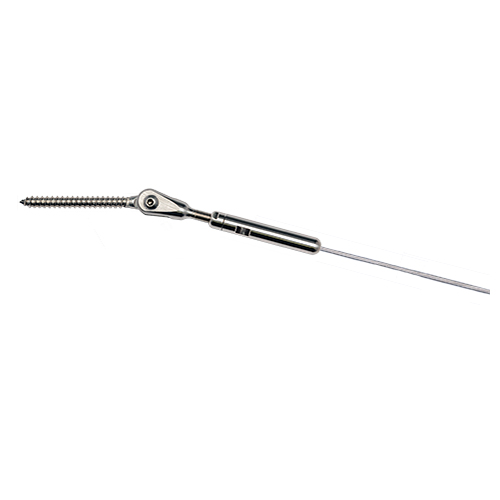

The Adjust-A-Jaw® is a swaged, tensioning, face-of-the-post­mounted fitting that can be used on level or pitched runs. This fitting is available for 1/8", 3/16", 1/4", 5/16", and 3/8" diameter 1x19 stainless steel cable.

The Adjust-A-Jaw® can be used with any fitting on the opposite end of the run. This fitting attaches to the wood end post by installing a Lag Eye into a pre-drilled hole in the end post and attaching the threaded jaw portion of the fitting to the lag eye with a button head screw. The cable is retained within the body portion of the fitting by a ferrule swaged onto the end of the cable.

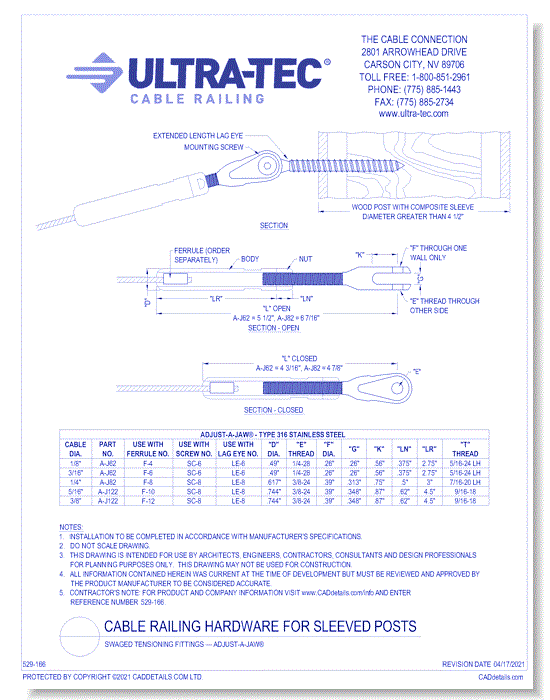

CAD Drawings Cable Connection, The (Ultra-tec Cable Railing) Cable Railing Hardware for Sleeved Posts — Adjust-A-Jaw®
