Cable Connection, The (Ultra-tec Cable Railing)

Metal - Cable Railing Framework

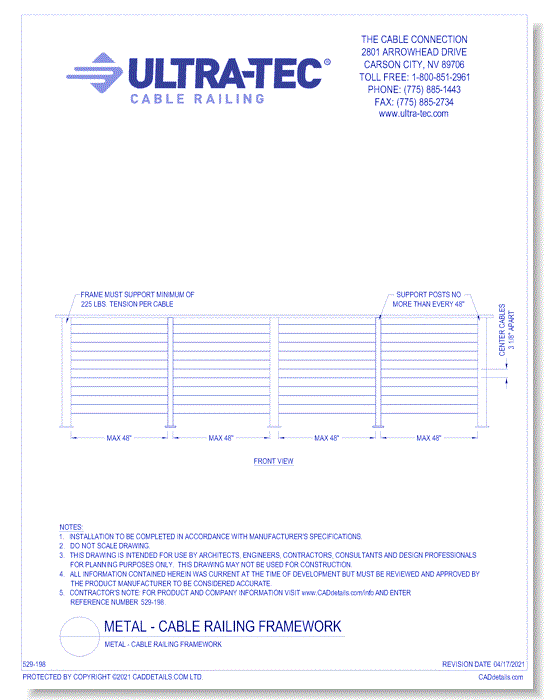

This frame has been shown to perform satisfactorily when subjected to the tension encountered when multiple load points (cables) are attached and tensioned properly on the top and bottom rails. Detailed downloadable drawings show proper spacing of the cables on the top and bottom posts to allow for cable flex within allowable limits to meet most code requirements (that a 4" sphere shall not pass through at any point). Note that we recommend cable braces to replace every eighth cable to keep the top and bottom rails from bending when the cables are tensioned.
CAD Drawings Cable Connection, The (Ultra-tec Cable Railing) Metal - Cable Railing Framework
