ThyssenKrupp Elevator

Twinpost Above-Ground 2-Stage

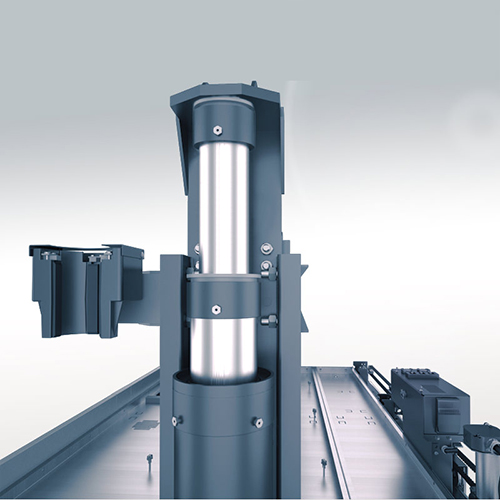

This configuration offers greater travel capabilities because of the telescoping sections. Instead of one section of plunger to extend up, there are two sections, thus allowing for almost twice the distance in travel being reached. This series is great for buildings with travel up to 23’-2.5” with minimum pit and overhead or up to 28’-6” with a small increase in pit and/or overhead.

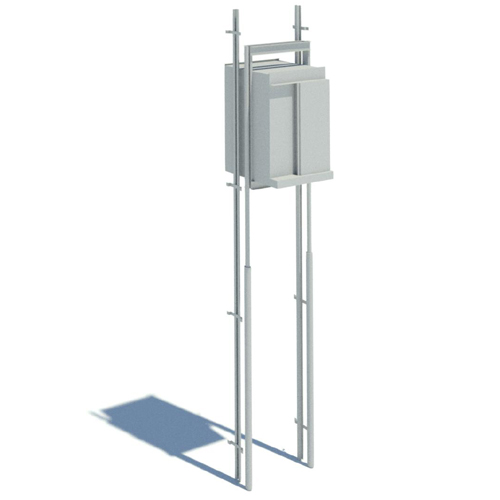

CAD Drawings BIM Models ThyssenKrupp Elevator Twinpost Above-Ground 2-Stage
